VT8300 Low Voltage Fan Coil Controller and Zone Controller
is the
perfect balance between simplicity and sophistication. Select from a variety of configurable screen colors to match decor. Display your own logo and custom messages on screen to reinforce your brand and provide a more enjoyable occupant experience.
Smart energy management has never been easier than with the VT8300 series Fan Coil Room Controllers. Designed for new construction and retrofit projects, the Room Controllers dramatically decrease project delivery costs by reducing installation, configuration and commissioning time. No complex software or tools are required to customize functionality in order to meet your applications requirements. The Room Controllers provide all the advanced features and monitoring functions required by modern building automation systems in a simple compact enclosure.
The VT8300 controllers are both application-specific AND programmable. This enables the modification of pre-configured control sequences, or the creation of entirely new control sequences for HVAC, Lighting and other applications. The Room Controllers are specifically designed to provide exceptional temperature control of multi-speed Fan Coil units. All models can provide advanced occupancy routines and automatic energy savings during occupied periods without sacrificing occupant comfort. When compared to traditional building automation controllers, the VT8300 series Fan Coil Room Controllers provide unmatched return on investment.

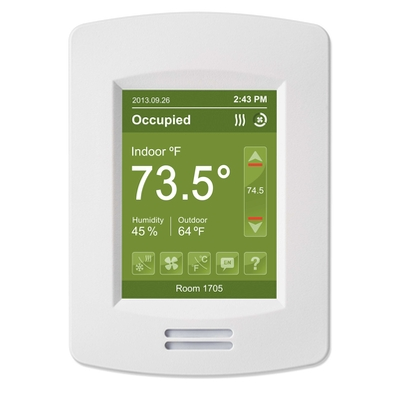

The touch screen of the VT8300 offers a customizable user experience with selection of languages, temperature scales, buttons, and screen colors. It also supports the upload of an image or logo that becomes the default standby screen of the device. Custom messages can also be displayed on-screen using BACnet® objects when the VT8300 is integrated to a BACnet system.
All models can be equipped with a discrete optional Passive Infrared (PIR) motion sensor. With the embedded sensor, the VT8000 uses advanced occupancy routines to generate automatic energy savings during occupied and unoccupied periods without sacrificing occupant comfort.
Features:
- Suitable for both commercial and hospitality markets and systems
- Customizable color digital touch screen interface with multi-language support
- Humidity sensor with on-board dehumidification strategy (model dependent)
- Optional occupancy sensor
- Advanced occupancy functions for commercial and lodging applications
- Optional wireless door and window switches (with optional ZigBee Pro® card) available for wireless communicating models only
- Configurable fan sequence of operation
- On board configuration interface utility
- Five screen colors are also selectable through the interface
- BACnet® MS/TP (default model) ZigBee Pro® wireless mesh network (optional)
Supported networking protocols
- BACnet MS/TP (B) (selectable)
- Modbus (B) (selectable)
- ZigBee Pro wireless mesh network (P) (optional with communication module purchased separately)
Integration to Schneider Electric Systems
- Wireless integration to MPM devices (P)
- Wireless integration to BACnet IP, oBIX and EWS via MPM devices (P)
- Direct wired integration to BACnet MS/TP (B)
