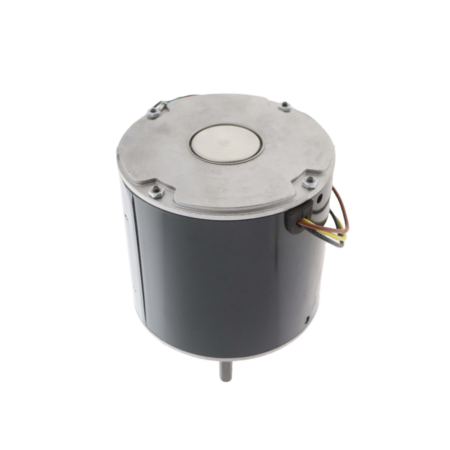

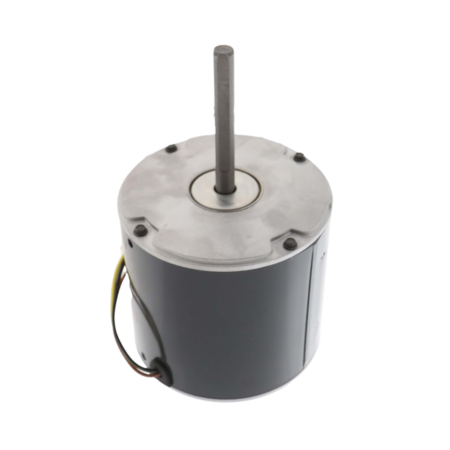

The Bard HVAC 8105-068BX is a single-phase blower fan motor that operates at 1.9A, 1/3Hp, 60 Hz, and 208/230V power ratings. The shaft rotates at 825 RPM speed in a clockwise direction.
This device has a permanent split capacitor (PSC) motor type that uses a capacitor to start and run the motor. Also features thermal protection, Class F insulation, and a 48Y frame.
The 8105-068BX is a direct replacement for 8105-068 and S8105-068. It is suitable for furnaces, air handlers, and heat pumps to help with system air circulation.
| Number of Phase | Single-Phase |
|---|---|
| Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor (PSC) |
| Horsepower | 1/3Hp |
| Voltage | 208/230V |
| Frequency | 60 Hz |
| Amperage | 1.9A |
| Rotation Speed | 825 RPM |
| Rotation Direction | Clockwise |
| Frame Size | 48Y |
