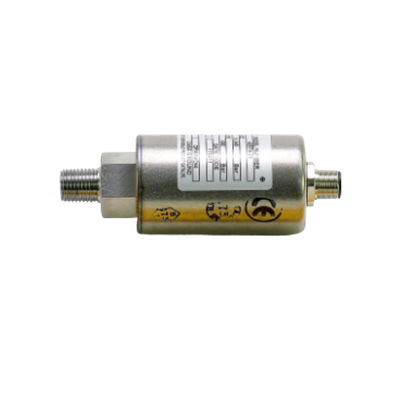

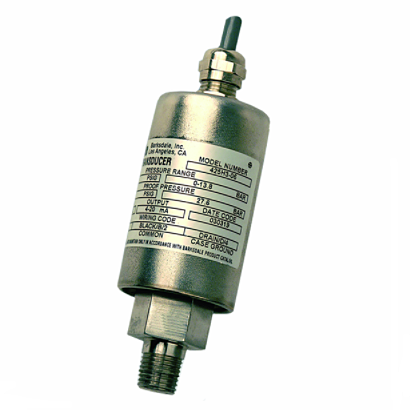

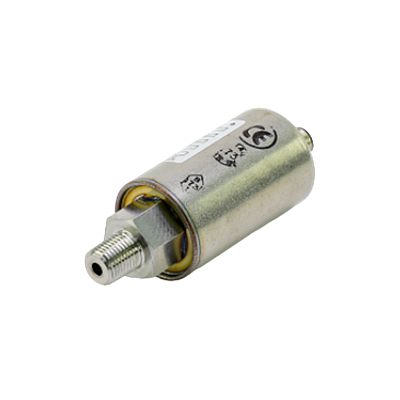

The 425T4-25 is a Pressure Transducer for Barksdale Products application. The transducer can receive a pressure range within 0-5 PSI.
425 Transmitters are general purpose, industrial grade transducers, ideal for use in general industrial applications when a robust transducer is required. Wetted parts are constructed of 17-4PH and 300 Series Stainless Steel, with NEMA 4 enclosures constructed of 304 Stainless Steel. These units feature a stable, diffused silicon sensor, that achieves .25% accuracy, have pressure ranges from 0-10,000 psi and are available in 5V, 10V or 4-20MA outputs. High pressure snubbers are standard on units at 2,000 psi and above. Optional surge voltage protection to 6kV is available.
Features:
General purpose, industrial grade transducer
Diffused silicon sensor for high accuracy and reliability
Rugged stainless steel enclosure
Superior surge voltage protection and EMI/RFI immunity
Built-in high pressure snubber (2000 psi and above)
Current and voltage signals
UL and cUL approved (UL508)
Applications:
Industrial hydraulic equipment
Cranes
Compressors
Gas metering
Vacuum machinery packaging
Pressure Range | 0-5 PSIG (0-0.345 BAR) |
---|---|
Proof Pressure | 0.690 BAR |
Output | 4-20 mA |
Wiring Code | Black/B/2 |
Download Product Information:
Barksdale 425 Series Pressure Transducer Technical Datasheet
