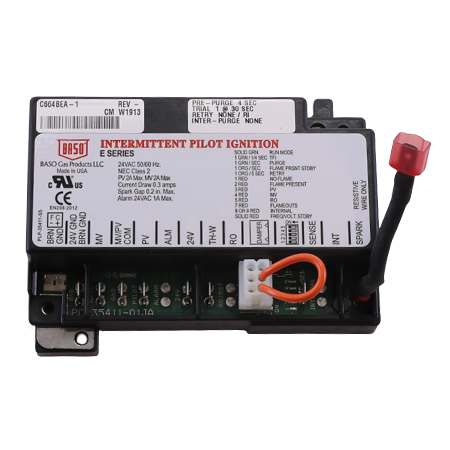

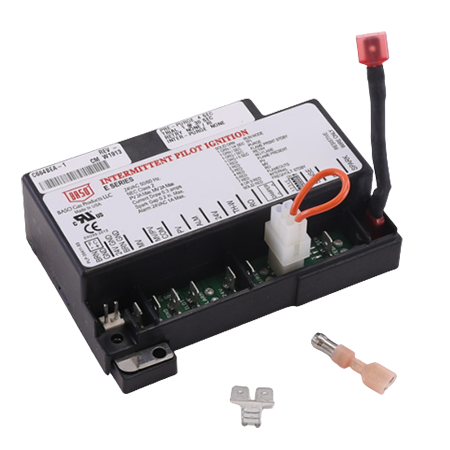

The C664BEA-1C is an intermittent pilot gas ignition control that has an electrical rating of 24V, 2A, and 50/60 Hz frequency.  It has a 4-second pre-purge time, 25 seconds trial for ignition, and a 1-second maximum flame failure response time.  UL-recognized and CE-marked

The intermittent pilot gas ignition control is suitable for use with indirect burner ignition and monitoring such as gas furnaces, boilers, water heaters, & commercial cooking applications.  The unit features full-time flame sensing with a built-in burner ground ideal for natural, LP, and manufactured gases.

The CC664BEA-1C directly replaces Baso BG1600M10FF-1AA, Lennox 13H46, Johnson Controls G600LX-1, and G770LHC-1.

Quick and easy installation with 4 mounting hole positions & flame test pins.  It is also designed with a multicolored LED indicator that flashes different colors to show ignition status and can be used for troubleshooting.
