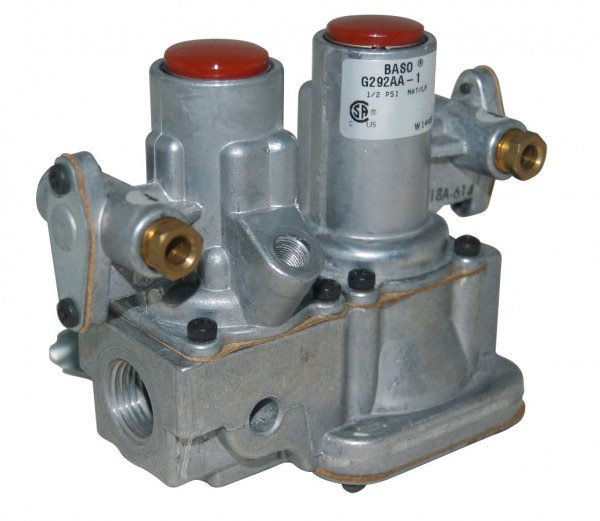

Baso G292 Series Baso Dual Pilot Gas Valve
The G292 Series is a dual pilot gas valve intended for use with a dual burner system that requires a continuously burning standing pilot at each burner. The G292 valve can be used with natural gas, Liquefied Petroleum (LP) gas and LP-air mixed gas at pressures up to 0.5 psi (35 mbar). Typical applications include commercial cooking applications. The G292 valve is a 100% shutoff device with a compact, cast aluminum valve body. It can be used with a dual burner system to ignite pilot gas for each burner. The flow interruption feature allows gas to flow only to the pilot during the lighting process.
Features:
| Maximum Operating Pressure | 0.5 PSI (35 mbar) |
|---|---|
| Valve Body Material | Aluminum |
| Ambient Temperature | 32 to 175°F (0 to 79°C) with rotor B valve |
| Pilot Connections | 1/4" Compression Coupling |
| Type of Gas | Natural, Liquid Propane, Gas-Air Mixtures |
Download Product Information:
Baso G292 Technical Data Sheet
Baso G292 Series Dual Pilot Gas Valve Installation Instructions
By Omar
from MCALLEN TX
Yes, I would recommend this product to a friend or co-worker
Valve is suitable to use in Pitco Fryer and works pretty good
Q & A: Ask the Questions, share answers
