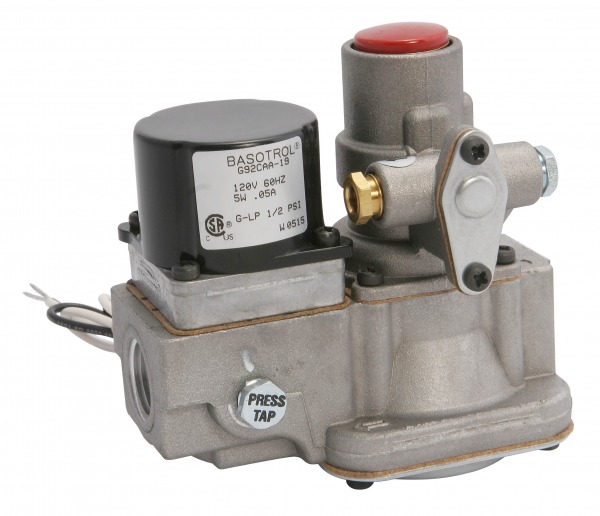

The G92 Series BASOTROL gas valve combines the automatic pilot valve and automatic main valve functions in one valve. Typical applications include central heating units, unit heaters, commercial clothes dryers and similar applications. Bipolar magnetic operator construction provides dependable operation and long life.

The G92 valves are 100% shutoff valves. They are supplied with a standard magnetic operator. Bipolar magnetic operator construction reduces the possibility of the valves’ sticking in the open position from residual magnetism or from mechanical interference.

The G92 valves can be used with natural gas, Liquefied Petroleum (LP) gas or LP gas-air mixtures, at pressures up to 0.5 psi (35 mbar). The G92 is suitable for operation over a temperature range of -30 to 175°F (-34 to 79°C). Models with a rotor B valve are suitable for operation over a temperature range of 32 to 175°F (0 to 79°C)

Note: This unit should be used only in applications that are within the limitations and provisions of the applicable American National and/or Underwriters Laboratories® (UL) standards.
