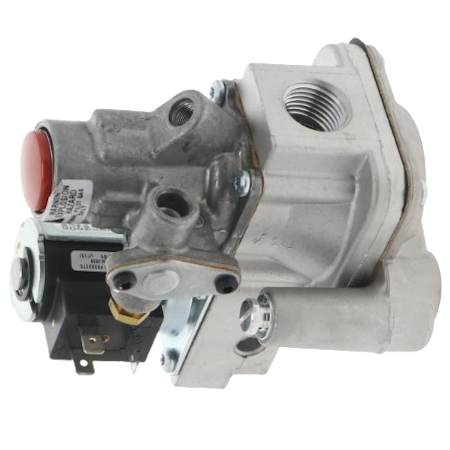

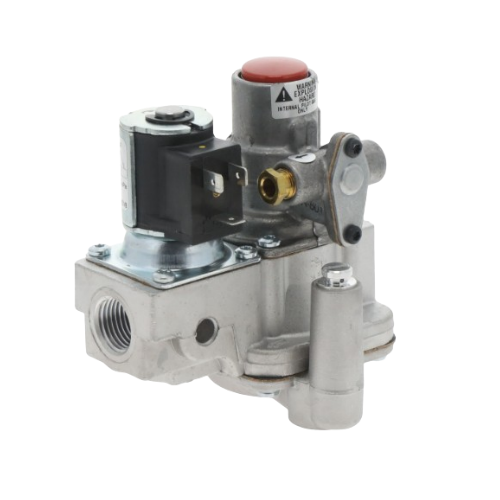

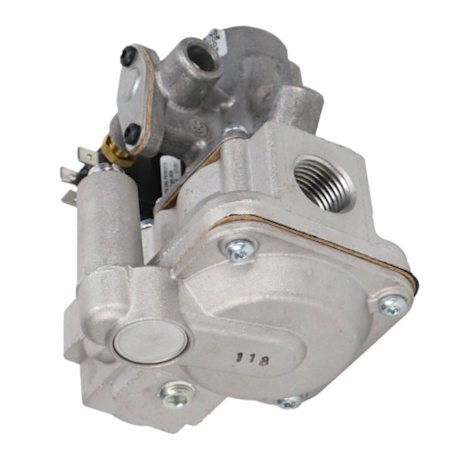

​The BASO G93ABA-11CREVB is a 1/2" combination automatic gas valve designed for use in commercial and industrial gas-fired equipment such as boilers, furnaces, and ovens.  Operating at 240V AC, it is capable of handling gas flow rates up to 200,000 BTU/hr, making it suitable for high-demand applications.

This valve integrates multiple functions, combining an automatic pilot valve, pressure regulator, and main gas valve into a single unit. It features a 1/4" pilot tap on the left side and a 1/8"-27 NPT pressure tap on the bottom, facilitating straightforward installation and maintenance.  The regulator adjustment is conveniently located on the top of the valve, allowing for easy access during setup and servicing.​

Built to withstand the rigors of industrial environments, the G93ABA-11CREVB is constructed from durable materials and is designed to operate reliably within a temperature range of 32°F to 155°F (0°C to 68°C).  Its robust design ensures consistent performance, contributing to the safety and efficiency of gas-fired systems.
