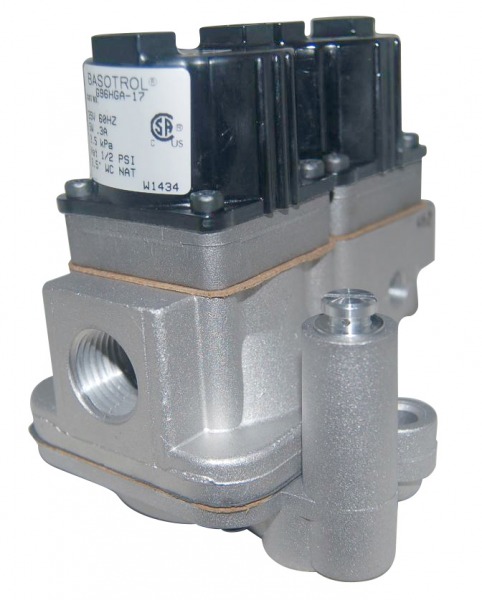

The G96 Series BASOTROL® valves are combination, dual operator, automatic valves available with or without a pressure regulator. Typical applications include central heating units, unit heaters, rooftop units, make up air heaters, and similar applications.

The G96 valve is equipped with two BASOTROL bipolar magnetic operators. Bipolar construction reduces the possibility of the valve sticking in the open position from residual magnetism or from mechanical interference.

A leak limit orifice is supplied as standard on valves with a regulator stack.

Valves can be constructed in one of the following two constructions.

The G96 Valves are suitable for use with natural gas or Liquefied Petroleum (LP) gas at pressures up to 0.5 psi (35 mbar [3.5 kPa]). The G96 valves with a silicone diaphragm are suitable for operation over a temperature range of -40 to 175ºF (-40 to 79ºC). Valves with a nitrile diaphragm are suitable for operation over a temperature range of -20 to 175ºF (-29 to 79ºC).

Note: This valve should be used only in applications that are within the limitations and provisions of the applicable American National and/or Underwriters Laboratories® standards.
