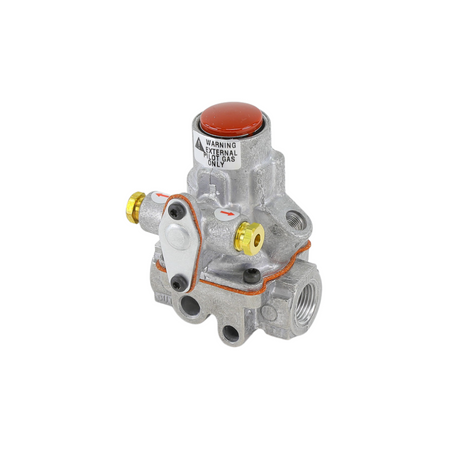

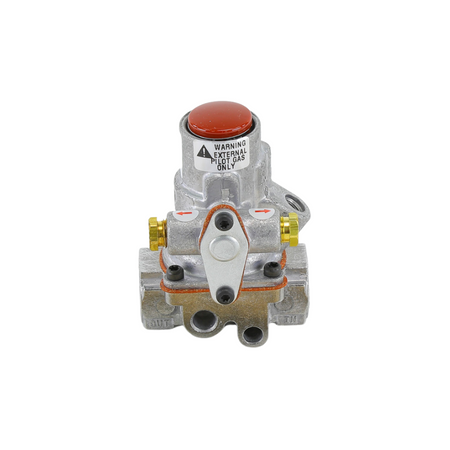

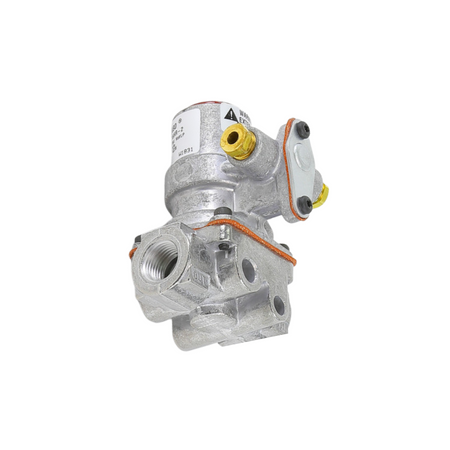

The Baso H15HR-2 is an automatic shutoff pilot gas valve with a 3/8” NPT connection size. This device has a maximum heat capacity of 160,000 Btu and maximum inlet pressure of 0.5 psi (35 mbar). CSA Listed and UL Recognized.
The gas valve provides safe lighting and complete shutoff for the pilot or main burner gas. This component features a pilot adjust valve for pilot flame adjustment. Compatible with natural or liquid petroleum gas types.
The H15 Series is suitable for the following domestic and commercial gas-burning applications:
| Approvals | CSA Listed and UL Recognized |
|---|---|
| Valve Type | Automatic Type |
| Ignition Type | Pilot |
| Connection Size | 3/8" NPT |
| Ambient Temperature Range | -34 to 79°C (30 to 175°F) |
| Maximum Inlet Pressure | 0.5 psi (35 mbar) |
| Maximum Heat Capacity | 160,000 BTU |
| Connection Type | Threaded |
| Gas Type | Natural Gas and Liquid Petroleum (LP) |
By Beth
from
Yes, I would recommend this product to a friend or co-worker
Our installer stated that it "took right off" once it was connected.
