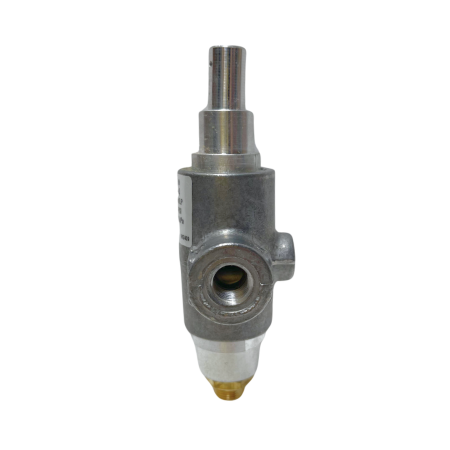

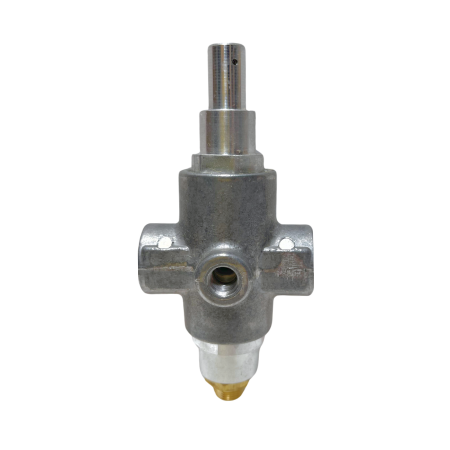

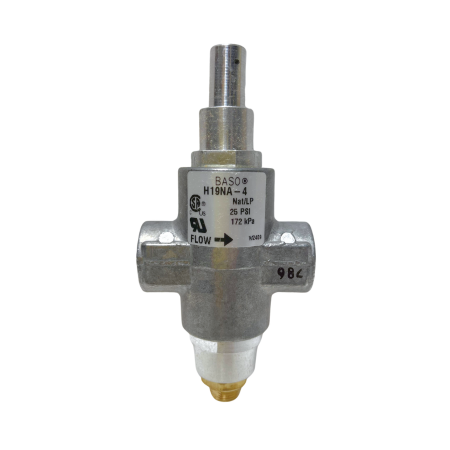

The Baso H19NA-4 is a high-pressure automatic shutoff pilot gas valve made of aluminum with 1/4" inlet x 1/4" outlet NPT and 1/8-27” right pilot tap NPT. UL Recognized and CSA Listed.
This valve features a flow interrupter that only allows gas flow to the pilot during the initial lighting operation. It also ensures safe lighting and 100% shutoff once the flame heating the thermocouple is out.
The H19NA-4 is compatible with natural and liquid propane gas with up to 600,000 btu at 25 psi (172 kPa) pressure. Suitable for commercial or industrial heaters and crop dryers.
| Application | Commercial and Industrial |
|---|---|
| Ambient Temperature | -40 to 150ºF (-40 to 66ºC) |
| Capacity | 600,000 btu |
| Maximum Pressure | 25 psi (172 kPa) |
| Connection Size | 1/4" inlet x 1/4" outlet NPT |
| Housing Material | Aluminum |
| Pilot Tap | 1/8-27" Right NPT |
| Gas Type | Natural and Liquid Propane |
| Approvals | UL Recognized and CSA Listed |
| Mounting Position | Any Position |
