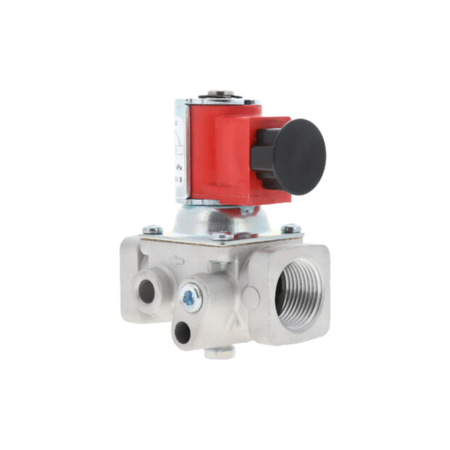

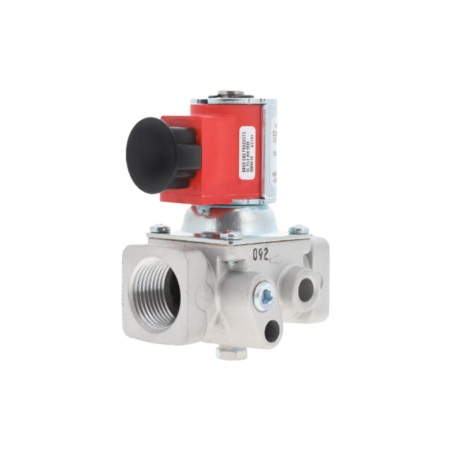

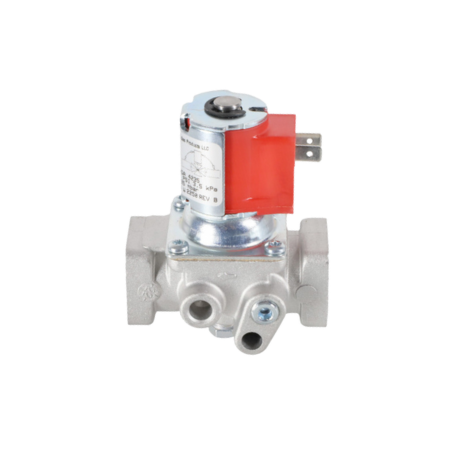

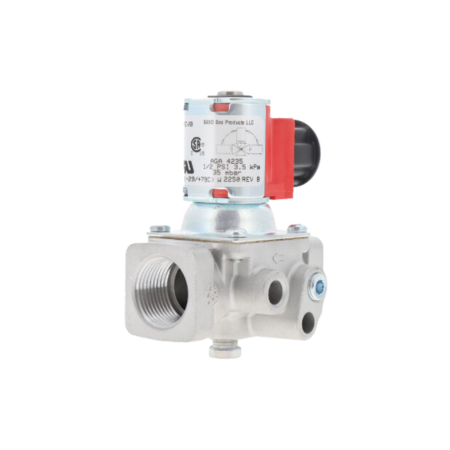

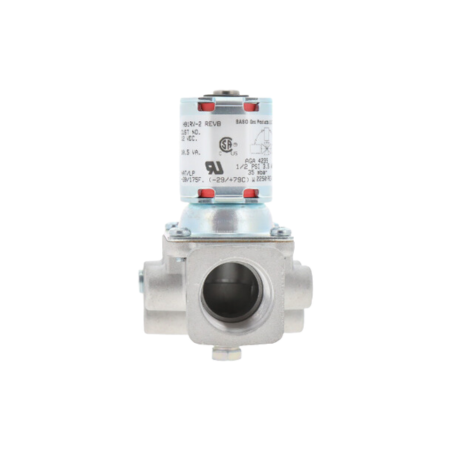

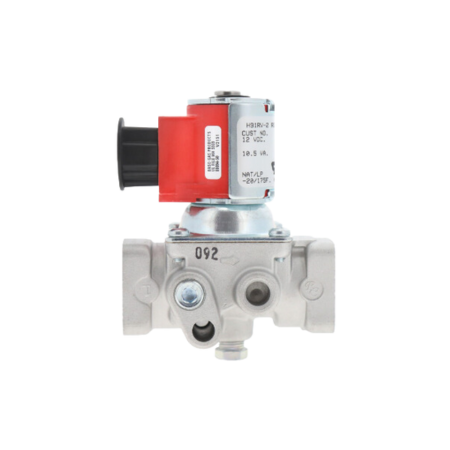

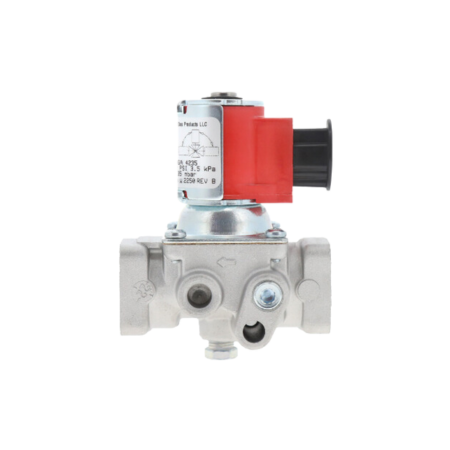

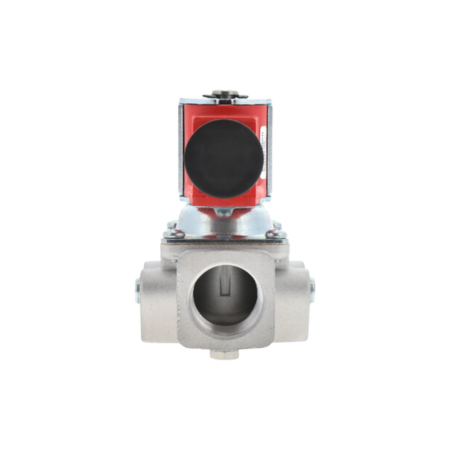

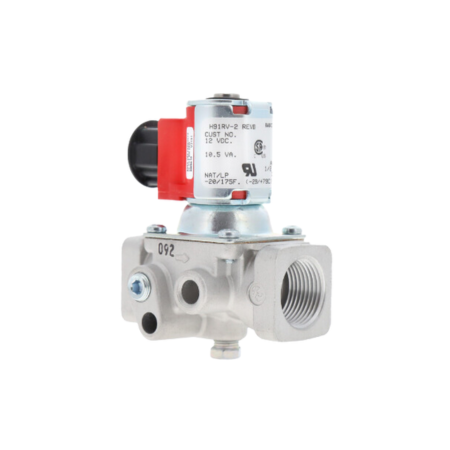

The Baso H91RV-2C REVB is a BasoTrol automatic single solenoid-operated gas valve operating at 12VDC. It has an aluminum body with a 3/4" inlet X 3/4" outlet NPT connection that can handle up to 325,000 Btu/hr. UL and CSA Listed ensuring compliance with safety standards.
This gas valve is electrically operated and automatically opens on a demand signal from a controlling device and closes when the signal is removed. This component is compatible with natural and liquefied petroleum (LP) gas at 0.5 psi.
The H91RV-2C REVB directly replaces H91RV-2C. Suitable for use on applications like boilers, heaters, generators, wall furnaces, commercial dryers or cooking equipment, and rooftop makeup units. It can be mounted in any position.
| Inlet and Outlet Pipe Size | 3/4" X 3/4" NPT |
|---|---|
| Approvals | UL and CSA Listed |
| Natural Gas Capacity | 325,000 Btu |
| Electrical Ratings | 12 VDC, 10.5 VA, and 0.875 A |
| Permissible Ambient (Surface) Temperature | -29 to 79ºC (-20 to 175ºF) |
| Rated Inlet Pressure | 0.5 psi (35 mbar [3.5 kPa]) |
| Valve Body | Aluminium |
| Wiring Connections | 1/4" (6.35 mm) Male Quick-Connect Terminals |
| Product Series | H91 Series BasoTrol |
| Gas Type | Natural, Liquefied Petroleum, or LP Gas-Air Mixtures |
By joseph
from MESA AZ
Yes, I would recommend this product to a friend or co-worker
Fit like a charm! Highly recommended
