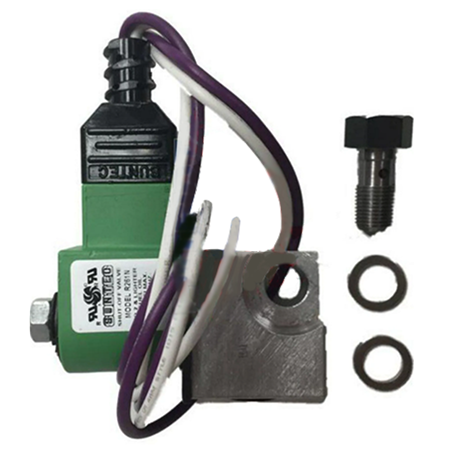

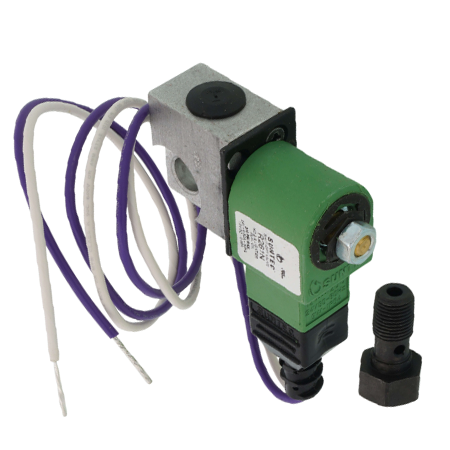

The 21441CU is a solenoid shut-off valve with a 1/8" FPT inlet, designed for use with Suntec A and B series pumps. It operates with a 12VDC or 24VAC input supply at 50/60 Hz, handling pressures up to 300 PSI with a flow rate of 16 GPH. The valve supports a maximum fluid temperature of 75°F (24°C). The unit is UL-recognized and CSA-approved.
The solenoid shut-off valve is equipped with a redundant cut-off feature and provides precise fuel flow control in heating systems, allowing reliable fuel management for optimal system performance. The valve is compatible with kerosene, #1, or #2 fuel oil, but should not be used with fuel blends containing more than 5% biodiesel.
The 21441CU is easy to install and can be directly mounted on Suntec fuel pumps.
| Media | Kerosene, #1 or #2 Fuel Oil |
|---|---|
| Maximum Fluid Temperature | 75°F (24°C) |
| Voltage | 24VAC/12VDC |
| Amperage | 0.60A |
| Frequency | 50/60 Hz |
| Inlet Connection Size | 1/8" FPT |
| Maximum Pressure | 300 psi |
| Application | Suntec Pump A and B Series |
| Flow Rate | 16 GPH |
| Approval | UL-recognized, CSA |
