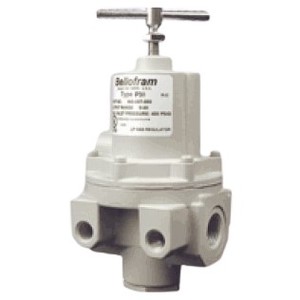

BelGas P38 Series Gas Regulator 1/2" 0-125psi

BelGas P38 Series Gas Regulator 1/2" 0-125psi
Images for general purposes only. Actual may be different than depicted.
BelGas P38 Series Gas Regulator 1/2" 0-125psi

BelGas P38 Series Gas Regulator 1/2" 0-125psi

SKU: P03804125000000
Rating:
Quantity Price Stock
Usually Ships 2-3 weeks
Usually Ships 2-3 weeks
$466.24     /ea
Usually Ships 2-3 weeks
0
$0.00
0
$0.00
0
P03804125000000

The P38 uses a patented balanced pintle design which eliminates unsteady changes in outlet pressure due to inlet pressure fluctuations. The P38 is a spring opposed, diaphragm - operated, non-relieving regulator. The use of a relief valve is recommended for this product in accordance with NFPA 58.

Features:
  • Balanced pintle design
  • Exceptional flow capacity
  • Bubble tight/non-relieving
  • Enclosed space use
  • 27 Mbtu/hr (260 scfm)
  • High volume applications
  • UL listed
  • Minimal effect on output pressure from variation
  • Bellofram Rolling Diaphragm of supply pressure
  • Temperature Range -40 to 200˚F
Applications:
  • Pneumatic Controllers
  • Valve Positioners
  • Actuation
  • Fuel Gas
  • Compressed Air
Adjustment: T-Bar
Materials of Construction: Zinc, Aluminum, Plated Steel, Buna-N, Brass
Approximate Weight: 5.0 lbs, 2.25 kg
Outlet Ranges: 0-30, 0-60, 0-125 PSIG (0-2, 0-4, 0-8 BAR)
Port Size: 3/8, 1/2, 3/4, 1 NPT
Diaphragm Material: Nitrile Elastomer with Polyester Fabric
Max. Inlet Pressure: 400 PSIG (28 BAR)
Sensitivity: 1/2" water column

Download Product Information:

BelGas P38 Series Gas Regulator Catalog Page
