The Belimo B310BLRB24-SR is a Valve Assembly consisting of a B310B 3-Way Brass valve with 1/2" FNPT and LRB24-SR 24 VAC/VDC Motor Actuator.

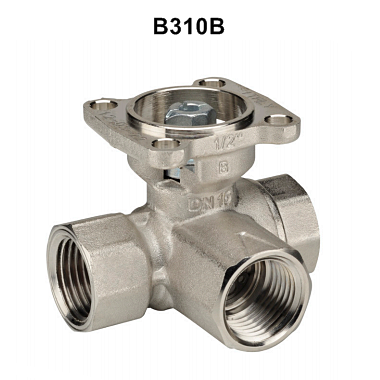

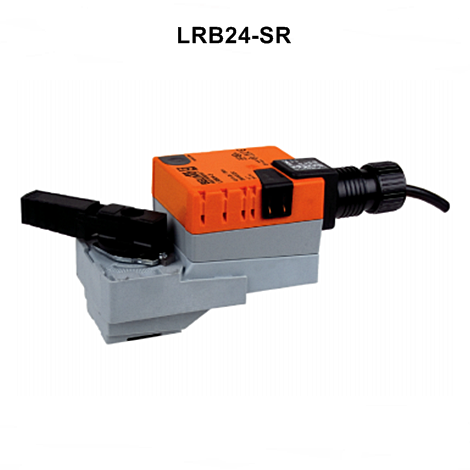

The B310B characterized control valve composes of a chrome-plated brass ball and nickel-plated brass stem. This valve is connected to the LRB24-SR Modulating Non-Spring Return Motor Actuator.
The valve assembly is used on HVAC units for heating or cooling coils. Applicable also on Unit Ventilators, VAV box reheat coils, bypass loops, and hydronic system with a variable or constant flow.
| Valve Cv | 1.2 |
|---|---|
| Valve Size | 1/2" FNPT |
| Controllable Flow Range | 75 degree |
| Body Pressure Rating | 600 PSI |
| Close off Pressure | 200 PSI |
| Power Supply | 24 VAC/VDC |
| Angle of Rotation | 90 degrees |
| Running Time | 90 sec |
| Operating Range | 2-10 VDC |
| Approvals | CE, UL Listed |
