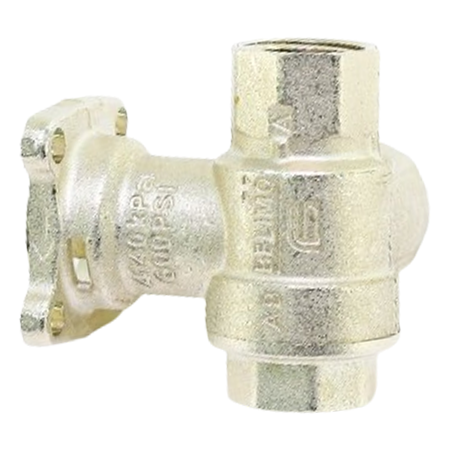

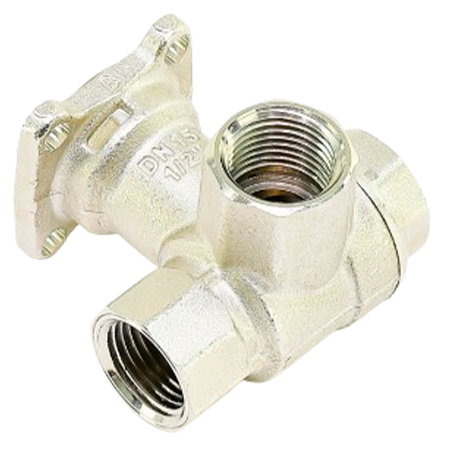

Belimo B315L Ball Valve 1/2" Npt 3-Way

Belimo B315L Ball Valve 1/2" Npt 3-Way
Images for general purposes only. Actual may be different than depicted.
Belimo B315L Ball Valve 1/2" Npt 3-Way Belimo B315L Ball Valve 3-Way

Belimo B315L Ball Valve 1/2" Npt 3-Way

SKU: B315L
Rating:
Quantity Price Stock
2
Usually Ships 2 - 3 Weeks
$139.36     /ea
2

The B315L found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Belimo B315VS 1/2" 3-Way 4.8Cv Stainless Steel Ball and Stem B315VS

Brand Belimo
Belimo B315VS 1/2" 3-Way 4.8Cv Stainless Steel Ball and Stem
0
$0.00
0
$0.00
0
B315L
The B315L is a ball valve that has a 1/2" NPT connection size with a 3-way flow pattern design.  It has a nickel-plated brass body with a 600 psi pressure rating and 200 psi close-off pressure that can withstand up to 0 to 250°F fluid temperature.

The ball valve is suitable for air handling units such as heating or cooling coils, and fan coil unit heating or cooling coils.  The unit can be used as a diverting or change-over valve to control the flow of fluids.

The unit is easy to install and can be mounted in either horizontal or vertical positions.  The ZG-M4 retrofit screw accessory is also available.

The B315L directly replaces part number B315VS.
Connection Size 1/2" NPT
Maximum Differential Pressure 50 psi
Body Pressure Rating 600 psi
Close-off pressure 200 psi
Controllable Flow Range 75°
Flow Capacity 6.4 Cv
Flow Pattern Three-way Diverting
Fluid chilled or hot water, up to 60% glycol
Body Material Nickel-Plated Brass
Ball Material Chrome Plated Brass
