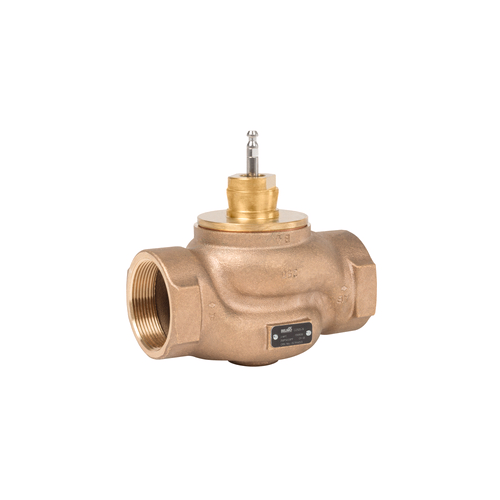

The Belimo G250B-N bronze globe valve provides precise 2-way flow control for commercial HVAC hydronic systems using chilled water, hot water, low-pressure steam, or glycol solutions up to 60%.

Designed with a 2" internal threaded NPT connection and 40 Cv flow coefficient, this ANSI Class 250 valve supports reliable modulation for heating and cooling applications where stable water flow and accurate temperature control are required.

Its modified equal percentage flow characteristic helps improve control response, while the bronze body, bronze trim, brass plug, stainless steel stem, and EPDM O-ring stem packing deliver durable performance in demanding mechanical systems.

With stem-up-to-open operation from A to AB and pressure capability up to 400 psi for water below 150°F, the G250B-N is a dependable choice for Belimo actuator-compatible globe valve installations requiring long service life, consistent shutoff, and efficient HVAC system operation.


Frequently Asked Questions


• What is the Belimo G250B-N used for?

The Belimo G250B-N is used for 2-way flow control in commercial HVAC hydronic systems. It helps regulate chilled water, hot water, low-pressure steam, and glycol solutions in heating and cooling applications.

• What size connection does the Belimo G250B-N have?

The Belimo G250B-N has a 2" internal threaded NPT end fitting.

• What is the Cv rating of the Belimo G250B-N?

This valve has a 40 Cv flow coefficient, making it suitable for applications requiring controlled water or steam flow in larger HVAC piping systems.

• Is the Belimo G250B-N a 2-way or 3-way valve?

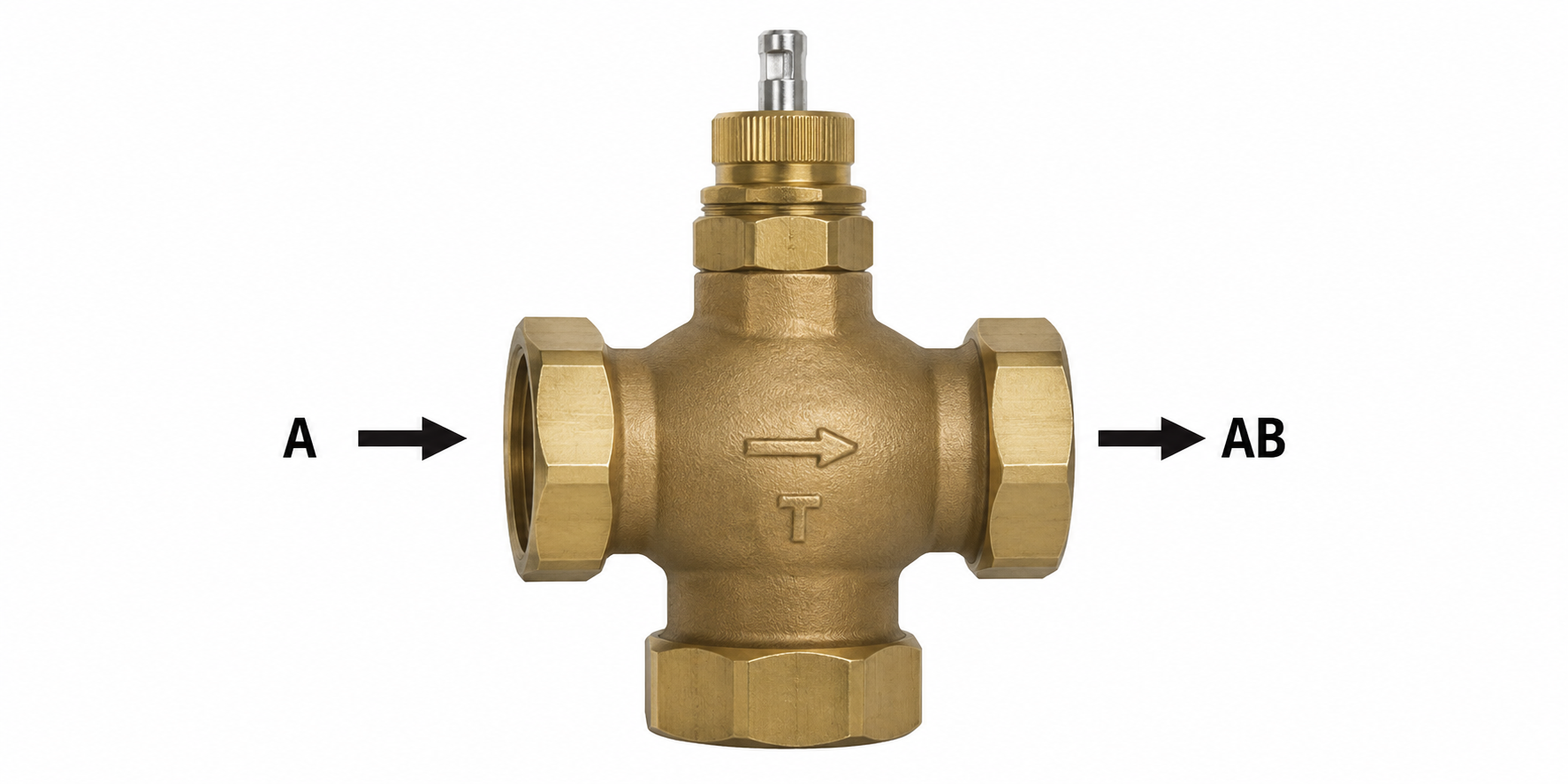

The Belimo G250B-N is a 2-way globe valve designed for flow from A to AB.

• What fluids are compatible with this valve?

The G250B-N is compatible with chilled water, hot water, low-pressure steam, and glycol solutions up to 60%.

• What is the pressure rating of the Belimo G250B-N?

This valve is ANSI Class 250 rated and supports up to 400 psi for water below 150°F.

• What type of flow characteristic does this valve have?

The Belimo G250B-N uses a modified equal percentage flow characteristic, which helps support stable and accurate HVAC temperature control.

• What materials are used in the Belimo G250B-N?

The valve features a bronze body, bronze trim, brass plug, stainless steel stem, and EPDM O-ring stem packing for durable HVAC system performance.

• Can the Belimo G250B-N be used with Belimo actuators?

Yes. The G250B-N is designed for Belimo globe valve actuator-compatible installations where automated flow control is required.
