Belimo ZG-AF Crank arm Adapter kit For AF/NF

Belimo ZG-AF Crank arm Adapter kit For AF/NF
Images for general purposes only. Actual may be different than depicted.
Belimo ZG-AF Crank arm Adapter kit For AF/NF

Belimo ZG-AF Crank arm Adapter kit For AF/NF

SKU: ZG-AF
Rating:
Quantity Price Stock
2
Usually ships 2-3 Weeks
$96.07     /ea
2

Buy in Bulk & Save

Quantity Price
5+ $91.27 /ea
0
$0.00
0
$0.00
0
ZG-AF

The ZG-AF US Crank Arm Adaptor Kit is designed for applications where the actuator cannot be mounted directly to the damper shaft

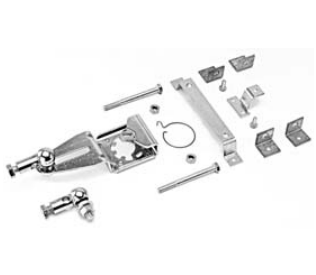

The ZG-AF US Crank Arm Adaptor Kit includes:

1 KH-AF Crank Arm with Retaining Ring

2 Standoff Brackets

4 Mounting Feet

2 Bolts with Nuts

2 Self-Tapping Screws

2 KG8 Ball Joints

The following Universal Mounting Brackets are needed to fully convert to crank arm operation:

ZG-100

ZG-101

The ZG-100 and ZG-101 Universal Mounting Brackets are designed for applications where the actuator cannot be mounted directly to the shaft, and no proper mounting surface is available. It may be used for outside or inside the duct mounting, fastened to the ductwork or directly to the damper assembly. It may also be used to mount to other surfaces rather than the duct.

The ZG-100 and ZG-101 are provided with pre-punched hole patterns for the AM, SM, GM, AF, AFB(X) and NFB(X) series actuators. The ZG-100 hole pattern layout allows mounting these actuators in three different, mounting orientations. The ZG-101 hole pattern layout allows mounting these actuators in two different, mounting orientations. The ZG-100 and ZG-101 may also be field drilled for special or more exact mounting of linkage components.
