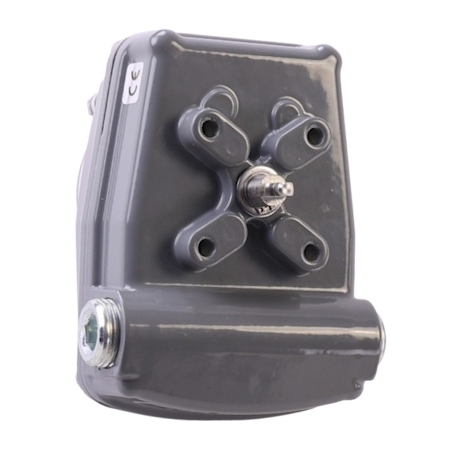

The Bray 5A0000-126A2536 is a Series 5A Valve Status Monitor (VSM) designed to provide both visual and electrical indication of valve positions for quarter-turn devices compliant with the VDI/VDE 3845 standard. Its compact, low-profile enclosure is constructed from die-cast aluminum with a polyester powder coating, ensuring exceptional resistance to corrosion, wear, impact, and ultraviolet exposure.

Key Features:

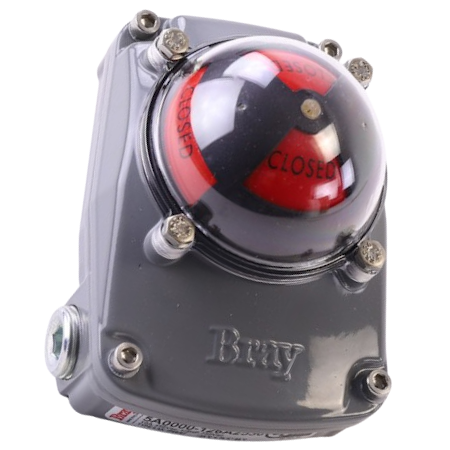

• High Visibility Position Indicator: Equipped with an impact-resistant dome-style indicator that can be rotated 90 degrees to invert the open and closed visual outputs without needing to remove the cover, thereby maintaining the integrity of internal wiring.

• Adjustable Sensor Cams: Features splined cam designs that allow for easy and accurate setting of switch activation points without the use of tools, ensuring precise control and feedback.

• Limit Switches: Accommodates multiple switch options and configurations to meet various connectivity requirements, enhancing versatility across different applications.

• Enclosure Ratings and Certifications: The VSM is rated IP66/67 and NEMA Type 4X, providing robust protection against environmental factors. It holds certifications including cULus, CE, and UL50E Salt Spray, attesting to its durability and compliance with industry standards.

• Flexible Mounting Options: Designed for versatile installation, the VSM can be mounted both perpendicular and parallel to the actuator. The visual indication can also be inverted without removing the cover, offering adaptability to various system configurations.

The Bray 5A0000-126A2536, when used in conjunction with the 5B0000-22601534 Adjustable Series 5A Mounting, serves as the replacement for the discontinued 50-0406-12610-532.
