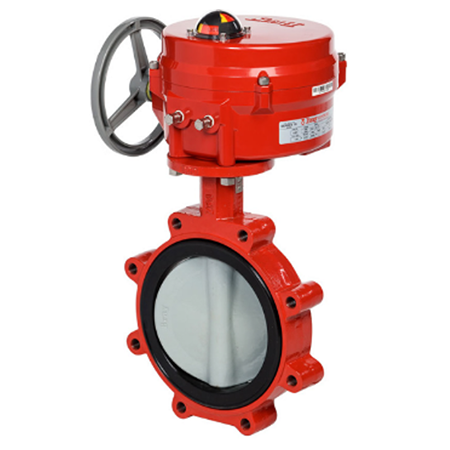

The NYL2-C060/70-0121H is a series 31 resilient seated butterfly valve with a series 70 industrial electric non-spring return actuator. The unit has a 6" valve size with a nylon-coated ductile iron disc. The assembly also includes an anti-condensation heater accessory to prevent internal condensation build-up.
The 2-way assembly butterfly valve is used in chilled water, service hot water, and condenser water mainly for isolation and flow control applications. The valve is designed with a polyester-coated cast iron lug body for excellent corrosion and abrasion resistance to prolong valve life. It features an Internal disc-to-stem connection for effective torque operation.

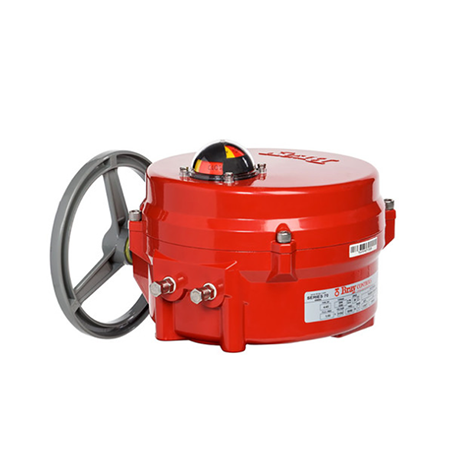

The NYL2-C060/70-0121H can easily be installed with 3/4”-10 UNC-2B threads. The electric actuator can be directly installed using the valve top flange mounting.
| Cold Working Pressure | 250 PSI (16 Bar) |
|---|---|
| Actuator Voltage | 120 VAC |
| Shutoff Rating | 175 PSI |
| Valve Size | 6" |
| Configuration | Normally Closed |
| Valve Type | 2-Way Assembly |
| Body Type | Lug |
| Maximum Fluid Velocity | 30 ft/second (9 m/second) |
| Fluid Temperature Limits | -40 to 250F (-40 to 121C) |
| Body Material | Cast Iron |
Download Product Information:
Bray Valve NYL2-C060/70-0121H Butterfly Valve Technical Datasheet
Bray Valve NYL2-C060/70-0121H Butterfly Valve Dimension
Bray Valve NYL2-C060/70-0121H Butterfly Valve Brochure
Bray Valve NYL2-C060/70-0121H Butterfly Valve Installation Manual
Bray Valve NYL2-C060 70-0121H Butterfly Valve Bolting without Washers Guide
Bray Valve NYL2-C060 70-0121H Butterfly Valve Bolting with Washers Guide
