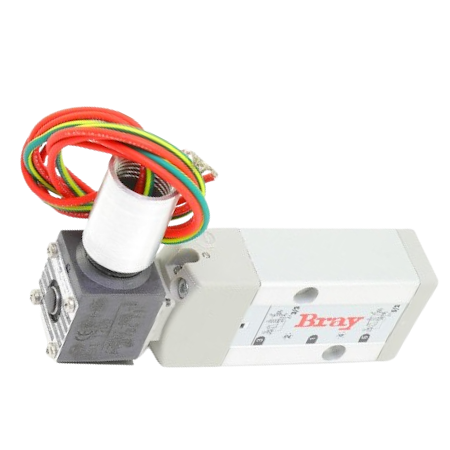

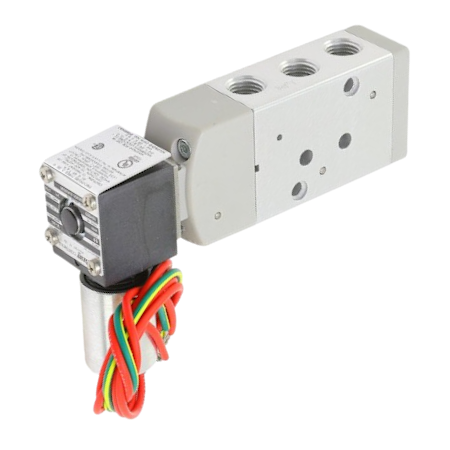

The Bray 630250-21403536 is a Series 63 pilot-operated spool control solenoid valve operating on 24 VDC with 1/2" NPT conduit electrical connections.  Built for hazardous environments with a NEMA 9 explosion-proof housing.  It has 1/4" NPT pneumatic ports with a flow capacity of 30 scfm at 150 psi.  Its Class F insulated coil is UL recognized and CSA certified.

This solenoid valve is designed for use with spring return or double-acting pneumatic actuators, providing reliable on/off electrical control.  It can be configured as either 3-way (3/2) or 4-way (5/2), offering versatility in pneumatic system design.  The NEMA 9 housing makes it suitable for hazardous locations (Class I, Div. 1, Groups A-D and Class II, Div. 1, Groups E-G), ensuring safe and dependable performance in demanding industrial settings.

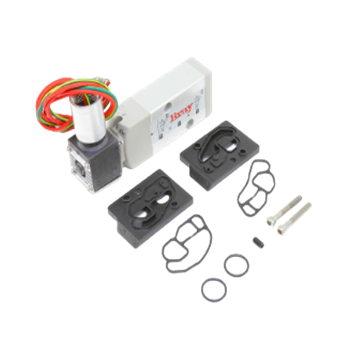

Installation is simplified with direct NAMUR mounting (VDI/VDE 3845) to Bray Series actuators, allowing easy installation.  A built-in manual override screw allows emergency operation during power loss.
