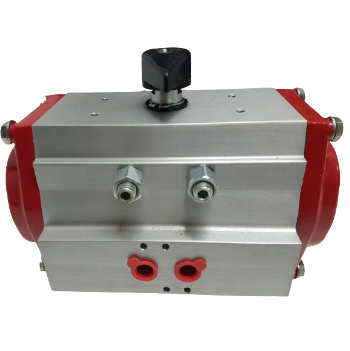

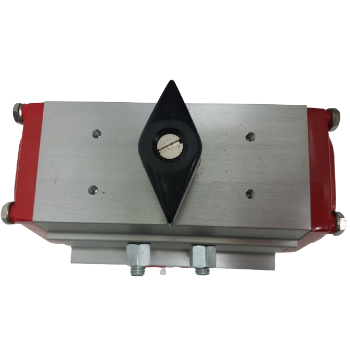

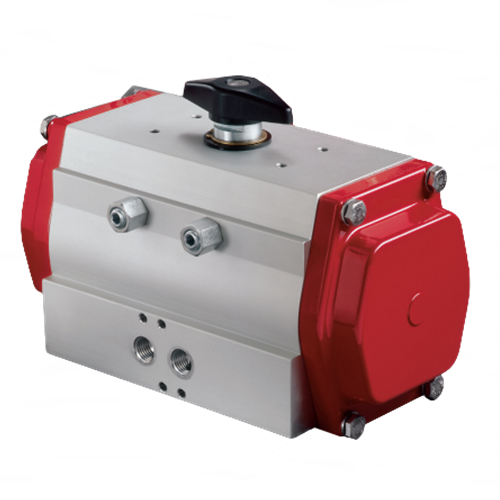

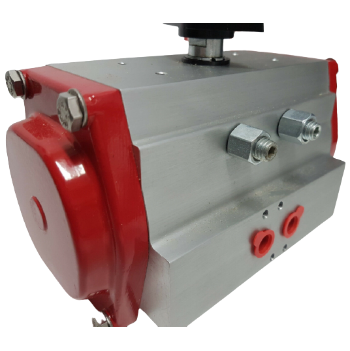

Bray Valves 92-1280-11305-532 Double Acting Pneumatic Actuator 140 PSI

Styling, strength, compactness, and simplicity of design have been combined to produce the Bray Series 92 direct-acting and the Series 93 spring return pneumatic actuators.

Engineering excellence and precision manufacturing have produced a modular product line with reduced overall size requirements and economic savings. In addition, all Bray accessories are fully modular and directly mount to the actuator – providing flexibility and efficiency at a reduced cost.

Bray Series 92/93 actuators are rack and pinion, opposed-piston actuators available in two versions: double acting for rotation of 90°, 135°, and 180°, and spring return for 90° rotation.

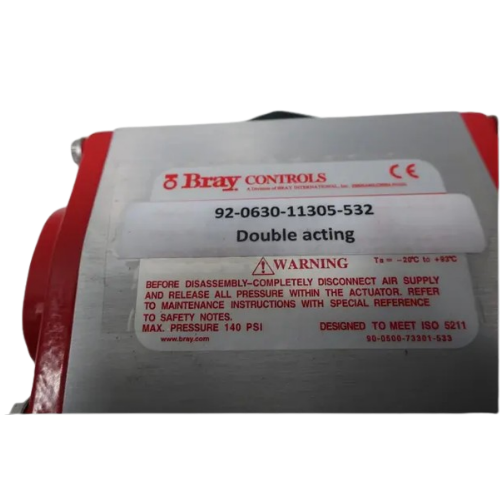

The Series 92/93 actuators were designed primarily for pneumatic operation up to a maximum pressure of 140 PSIG (10 Bar) and for temperature ranges of -4°F to 200°F (-20°C to 93°C). For higher and lower temperature applications, consult the factory.

All double acting and spring return units are suitable for both on/off and throttling applications. Actuators that can be actuated with other media such as hydraulic oil or water are also available as an option.

The Series 92/93 is completely enclosed and self-contained. The many features minimize maintenance and provide safe, simple disassembly and assembly.

Features:

• Two independently adjustable travel stop screws and a cam on the output shaft to permit precise bidirectional adjustment of movement in both the open and closed positions for quarter turn valves (+5° to -5° limit adjustment)
• Integral porting
• Standard units have anodized aluminum bodies with polyester coated end caps.
• Special coatings and materials available for corrosive environments
• NAMUR accessory compatible
