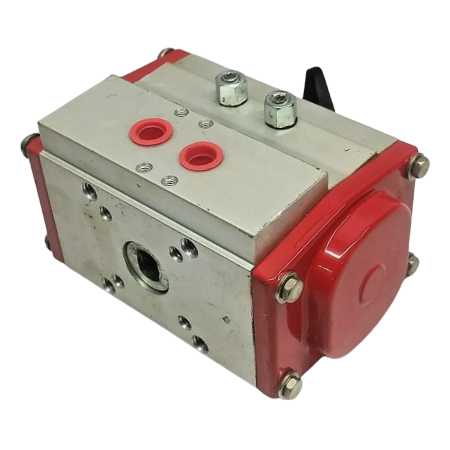

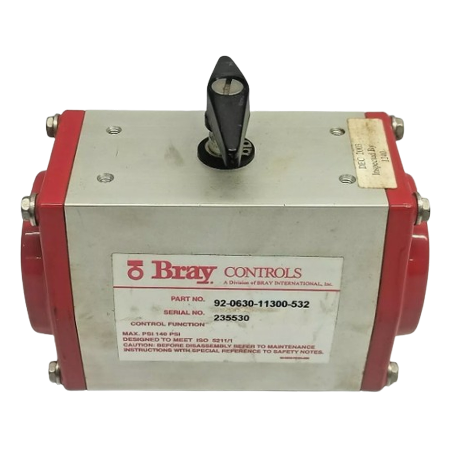

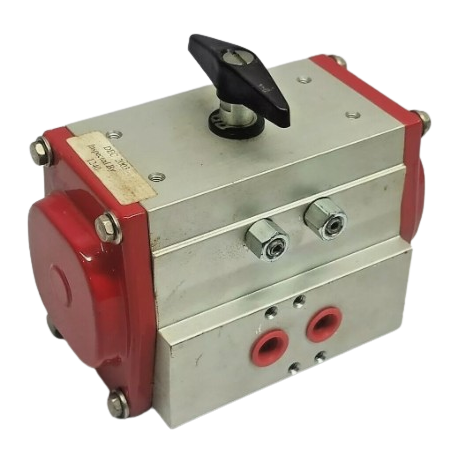

The Bray Series 92-0630-11300-532 is a pneumatic actuator that features a double piston, rack, and pinion mechanism designed for automating quarter-turn valves.  It has a 40 to 140 psi (3 to 10 bar) air pressure range and -20°F to 200°F (-29°C to 95°C) temperature range.

The Bray Series 92 pneumatic actuator is ideal for applications where precise control of quarter-turn valves is required with clean, dry industrial compressed air.  The unit controls the valve by rotating the pinion counterclockwise, opening the attached valve, and rotating it clockwise closing the valve.  The actuator is also suitable for a variety of industrial processes, including fast cycling applications when paired with an air line lubricator.

The 92-0630-11300-532 is easy to install with direct mounting on the top plate of the Bray Valves.
