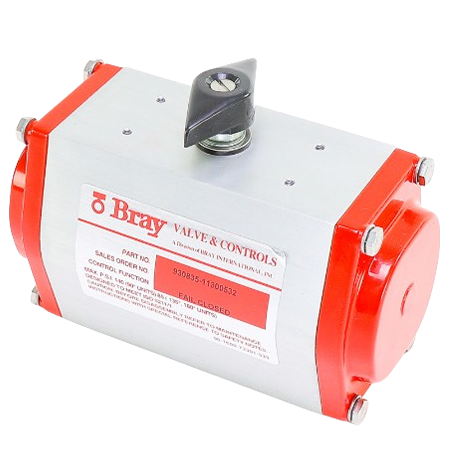

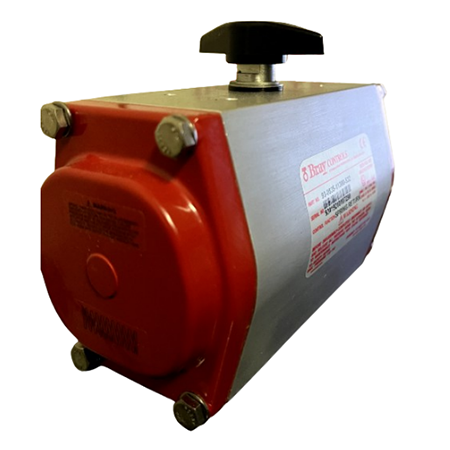

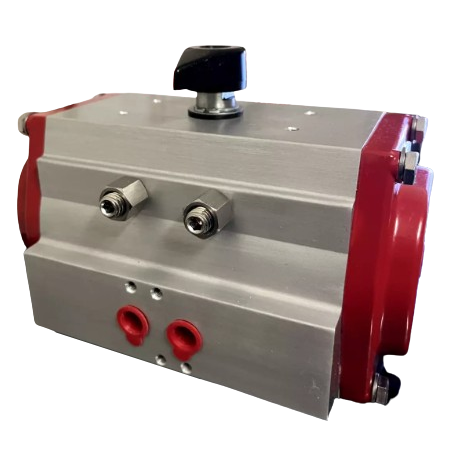

The 93-0835-11300-532 is a spring return pneumatic actuator that has a 140 psi maximum pressure.  It features a rack and pinion mechanism for quarter turn valve automation, double piston design, 90° rotation, and operates at -4°F to 200°F standard temperature range.  The actuator is CE-approved and complies with ISO 5211/1 standards.

The Bray Series 93 spring-return actuator is suitable for both on-off and throttling applications with clean, dry industrial compressed air, inert gases, or hydraulic oil & water.  The unit is designed to automate quarter-turn valves, ensuring reliable operation even if compressed air pressure is lost by pushing the pistons together which closes the attached valve.

The 93-0835-11300-532 is easy to install and can be mounted directly on the top plate of Bray valves.  Lubricating the output bore also allows the actuator to be easily removed.
