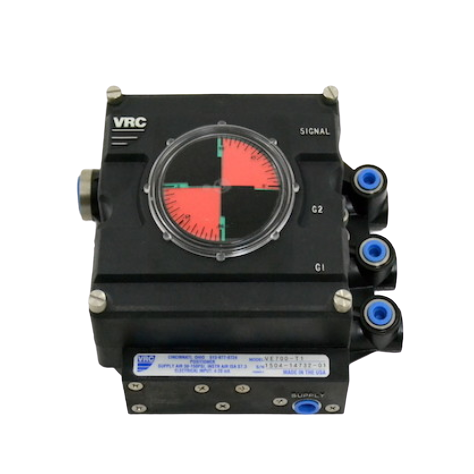

Bray Valves VRC-VE700G-T1 Electro-Pneumatic Positioner

Name: Bray Valves VRC-VE700G-T1 Electro-Pneumatic Positioner
Brand: Bray
SKU: VRC-VE700G-T1
Price: 1945.06 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Bray Valves VRC-VE700G-T1 Electro-Pneumatic Positioner

SKU: VRC-VE700G-T1

Brand:

Rating:

Quantity	Price	Stock
5 Usually Ships 3-4 weeks	$1,945.06 /ea	5

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Bray Valves VRC-VE700G-T1 Electro-Pneumatic Positioner for valve control or damper position. The port gauges are made of Brass and have a Flat 90 degrees position indicator.

VRC VE Model General Purpose Electro-Pneumatic Valve Positioners are used for stem positioning. They operate with 4-20 MA input control, the output that is proportional to the input control is delivered to an actuator resulting in valve positioning. These positioners have a lot to offer with various options you can choose from that fits your needs. Also, it is easy to install and the base unit can be modified.

Features:

Easy to Mount
Corrosion Resistant Enclosure
Modular Design

Air Consumption at 80 PSIG	0.25 SCFM Standard Flow Spool Valve
Gain at 80 PSIG	250 Single-Acting / 500 Double-Acting
Linearity	+/- 1.0% Maximum
Position Transmitter	4-20 MA
Temperature Range	-40° to 150°F/-40° to 65°C
Spool Valve	Standard Flow
Characterizing CAM	Linear
