Burnham Boiler 109620-01 Natural Gas Valve Step Open 1/2" NPT 0.7 to 3.5" W.C.

Name: Burnham Boiler 109620-01 Natural Gas Valve Step Open 1/2" NPT 0.7 to 3.5" W.C.
Brand: Burnham Boilers
SKU: 109620-01
Price: 278.20 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Burnham Boiler 109620-01 Natural Gas Valve Step Open 1/2" NPT 0.7 to 3.5" W.C.

SKU: 109620-01

UPC: 672616794675 Tariff HS Code: 8481809050

Brand:

Rating:

Quantity	Price	Stock
91 Usually Ships 2 - 4 Weeks	$278.20 /ea	91

Add to Cart

Add to Wishlist

The 109620-01 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Burnham Boiler 81660282 Natural Gas Valve 24V 1/2" NPT 3.5" W.C.	81660282 Brand Burnham Boilers

Add to Cart

Add to Wishlist

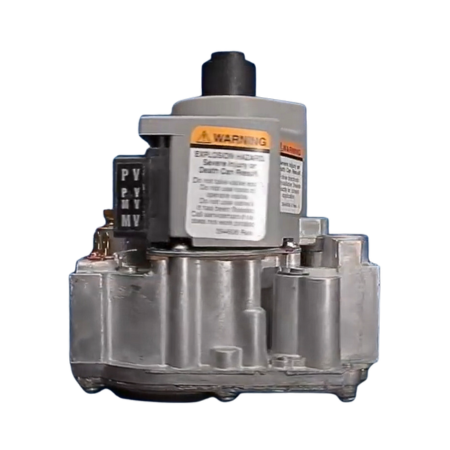

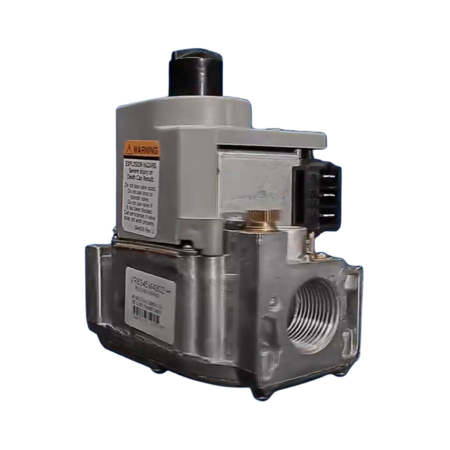

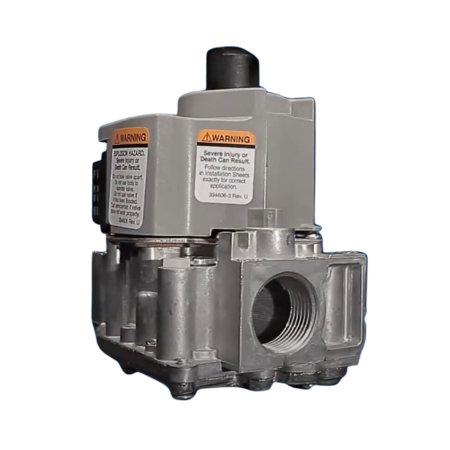

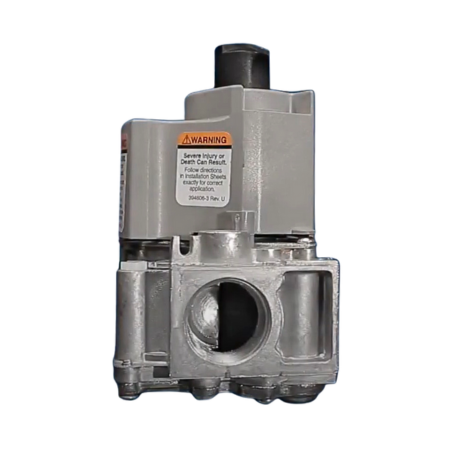

The Burnham Boiler 109620-01 is a step-open natural gas valve with a 1/2” NPT connection size. This component operates at 0.5A, 24V, and 60 Hz electrical ratings.

The gas valve features an on/off mechanism that allows maximum gas flow when open and completely shuts off when closed. It can handle 0.7” to 3.5” W.C. pressure and 0 to 175°F temperature.

The 109620-01 directly replaces Burnham models 81660145, 81660282, 81660176, and Honeywell VR8204C3007. It is compatible with the following natural gas-fired boiler model numbers:

206E
X-202N-GH
X-204

206EN-T0
X-202N-TH
X-205

X-202
X-203
X-206

Ignition Type	Intermittent Pilot
Gas Type	Natural Gas
Connection Size	1/2" NPT
Temperature Range	0 to 175°F
Pressure Range	0.7 to 3.5" W.C.
Frequency	60 Hz
Voltage	24V
Total Current	0.5A
Application	Gas-Fired Boiler
Gas Range	3 to 5
