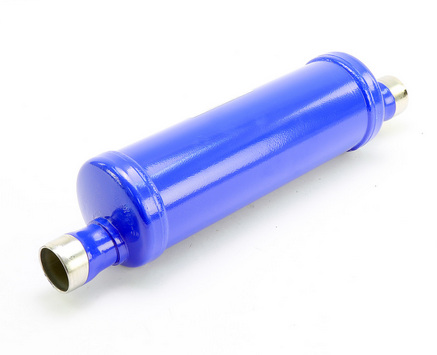

Camstat Henry S-6415 Discharge Line Muffler 1-5/8"

Name: Camstat Henry S-6415 Discharge Line Muffler 1-5/8"
Brand: Camstat-Henry Technologies
SKU: S-6415
Price: 148.00 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Camstat Henry S-6415 Discharge Line Muffler 1-5/8"

SKU: S-6415

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2-3 Weeks Usually Ships 2-3 Weeks	$148.00 /ea	Usually Ships 2-3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Henry Technology Discharge Line Muffler

The function of a Discharge Line Muffler is to reduce pressure pulsations downstream of the Compressor. The Muffler is designed to be installed directly after the compressor. Henry
Technologies’ Discharge Line Mufflers are suitable for use with HCFC and HFC refrigerants, and their associated oils, as well as other industrial fluids non-corrosive to steel and copper. The Muffler reduces noise, due to gas pulsations, by allowing the gas to expand inside muffler chambers. Mufflers have internal baffles which are designed to dampen and smooth out low and high frequency compressor gas sound waves.

Features:

ODS connections
Sound reduction
Bi-directional flow
Robust design

Maximum Working Pressure	451 PSI (31 Bar)
Allowable Operating Temperature	+32Â°F to +250Â°F (0Â°C to +121Â°C )
Body Material	Carbon Steel
Connection Material	Plated Carbon Steel
Approvals	UL, C-UL

Download Product Information:

Camstat Henry Discharge Line Muffler Specification Sheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

El producto o silenciador se puede soldar en caso de fuga?

Asked on February 19, 2025 by Edgar from Iztapalapa

1 Answers

Have an answer? Click Here

The Camstat Henry S-6415 Discharge Line Muffler is NOT designed to be welded in case of a leak. If a leak occurs, it is recommended to replace the muffler to ensure proper system performance and reliability. Welding could compromise the internal components and effectiveness of the muffler.

El silenciador de la línea de descarga Camstat Henry S-6415 no está diseñado para ser soldado en caso de una fuga. Si ocurre una fuga, se recomienda reemplazar el silenciador para garantizar el rendimiento y la confiabilidad del sistema. Soldarlo podría comprometer los componentes internos y la efectividad del silenciador.

Replied on February 20, 2025 by Ori from Industrial Stores
