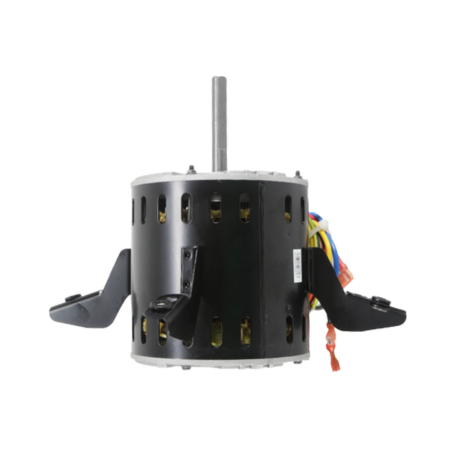

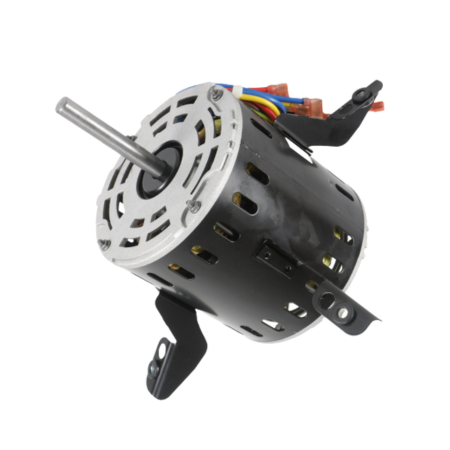

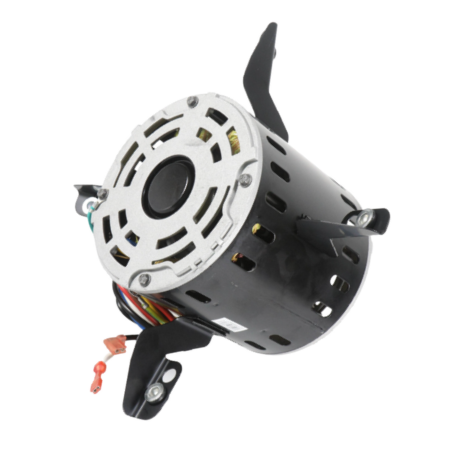

Carrier HC43TQ114 Blower Motor 1-Phase 1/2 HP 115V 60 Hz 1075 RPM 4-Speed CCW

Name: Carrier HC43TQ114 Blower Motor 1-Phase 1/2 HP 115V 60 Hz 1075 RPM 4-Speed CCW
Brand: Carrier
SKU: HC43TQ114
Price: 462.34 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Carrier HC43TQ114 Blower Motor 1-Phase 1/2 HP 115V 60 Hz 1075 RPM 4-Speed CCW

SKU: HC43TQ114

UNSPSC: 26101400

Brand:

Rating:

Quantity	Price	Stock
16 Usually Ships 2 - 4 Weeks	$462.34 /ea	16

Add to Cart

Add to Wishlist

The HC43TQ114 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Carrier HC43TE114 Blower Motor 1/2 HP 115V 1075 RPM 4-Speed	HC43TE114 Brand Carrier

Add to Cart

Add to Wishlist

The Carrier HC43TQ114 is a single-phase blower motor rated at 1/2 HP, 115V, 60 Hz, and 6.2A. UL Recognized for safety and reliability.

Features

48 Frame
Direct Drive
Thermally Protected
Permanent Split Capacitor (PSC)
Class B Insulation
Continuous Duty
Sleeve Bearings

This motor has a single-side flat shaft with 1/2” diameter and 3.3” length, operating at 1075 RPM in a counterclockwise rotation at 4-speed.

The HC43TQ114 is a direct replacement for the HC43TE114 blower motor and is compatible with the following Carrier gas furnace models:

59SC2A040S141110
59SC5A040S141110
59SC5A060S141110
912SA30060S14A-A
915SA30060S14A-A
PG95SAS30040AAAA

59SC2A060S141110
59SC5A040S141210
59SC5A060S141210
915SA30040S14A-A
915SA30060S14A-B
PG95SAS30040ABAA

59SC5A040S141110
59SC5A040S141210
912SA30040S14A-A
915SA30040S14A-B
PG92SAS30040AAAA

Horsepower	1/2 HP
Voltage	115V
Frequency	60 Hz
Number of Phase	Single-Phase
Rotation Speed	1075 RPM
Rotation Direction	Counterclockwise (CCW)
Motor Speed	4-Speed
Capacitor	15µF/370VAC
Mount Style	Ear-Style
Shaft Size	1/2” Diameter x 3.3” Length
