Carrier HD60FK659 Motor 460V 1725RPM 5HP

Name: Carrier HD60FK659 Motor 460V 1725RPM 5HP
Brand: Carrier
SKU: HD60FK659
Price: 2650.47 USD
Availability: OutOfStock

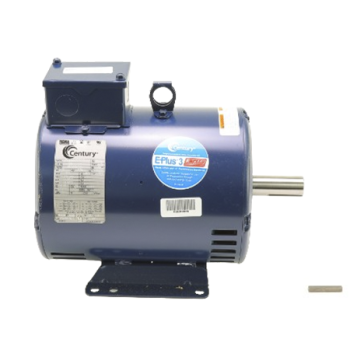

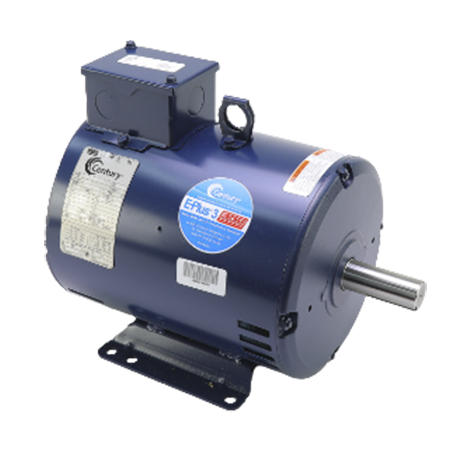

Images for general purposes only. Actual may be different than depicted.

Carrier HD60FK659 Motor 460V 1725RPM 5HP

SKU: HD60FK659

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$2,650.47 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

The HD60FK659 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Carrier HD60FK657 Motor 230/460V 1775RPM 60HP	HD60FK657 Brand Carrier

Add to Cart

Add to Wishlist

The HD60FK659 is a three-phase motor that has a power rating of 5 HP, 230/460V, 60 Hz, and a 6.3 full-load amp. The unit has a 1-1/4" shaft size and rotates in a clockwise direction at a speed of 1725 RPM. UL-recognized.

The permanent split capacitor motor is suitable for packaged air handling units, packaged heat pump units, and packaged rooftop unit applications. It is designed with a permanent split capacitor design that provides higher pullout torque.

The motor replaces part numbers HD60FK657 and HD60FL650.

Check out the compatible models:

40RUAA16AA6A
40RUAA25AA5A
40RUAA25AA6A
40RUAA25AA9A
40RUQA16AA6AA
40RUQA25AA5AA
40RUQA25AA6AA
40RUSA16AA6A
40RUSA25AA5A
40RUSA25AA6A
524JE16A000A
524JE16H000A

524JE25A000A
524JE25H000A
524JP25A000A
524JP25H000A
LC8-50LC400779
TCHC01-50HE400833
TCHC01-50HE401549
TCHC01-50HE401550
TCHC01-50HE401551
TCHC01-50HE401552
TCHC01-50HE401556
TCHC01-50HE401557

40RUAA12AA9A
40RUAA14AA9A
40RUAA16A3A5A
40RUAA16AA9A
40RUAA16T3A5A
40RUAA16TA5A
40RUAA16TA6A
40RUQA16AA5AA
40RUQA16TA5AA
40RUQA16TA6AA
48HCDD145A
48HCDD146A

48HCED145A
48HCED146A
48HCFD145A
48HCFD146A
48TCDD165A
48TCDD166A
48TCED165A
48TCED166A
48TCFD165A
48TCFD166A
50HCD145A
50HCD146A

50HCQD125A
50HCQD126A
50TC-D165A
50TC-D166A
50TC-D169A
50TCQD145A
50TCQD146A
580JE16D240A

Approvals	UL-recognized
Motor Type	Permanent Split Capacitor
Number of Phases	3-Phase
Voltage	230/460V
Frequency	60 Hz
Horsepower	5 HP
Maximum Load Amperage	6.3A
Rotation	Clockwise
Rotation Speed	1725 RPM
Shaft Size	1-1/4"

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Hello Can you please tell me the shaft size of the motor

Asked on April 05, 2018 by Paul from Ohio

2 Answers

Have an answer? Click Here

The shaft on the HD60FK659 is approximately 3" long.

Replied on April 06, 2018 by Ron from Industrial Stores

The diameter of the HD60FK659 motor shaft is 1-1/4" (1.25").

Replied on April 09, 2018 by Ori from Industrial Stores
