Carrier HK42FZ036 Control Board

Name: Carrier HK42FZ036 Control Board
Brand: Carrier
SKU: HK42FZ036
Price: 393.23 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Carrier HK42FZ036 Control Board

SKU: HK42FZ036

Brand:

Rating:

Quantity	Price	Stock
27 Usually Ships 1 - 2 Weeks	$393.23 /ea	27

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

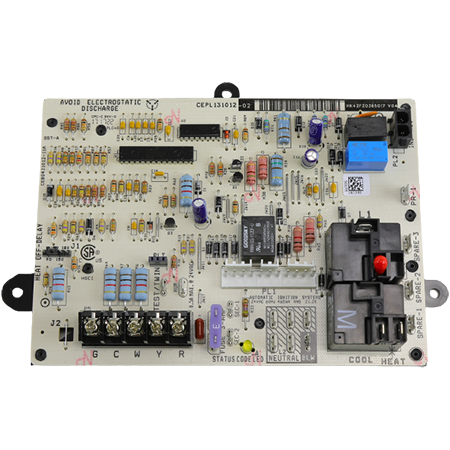

The HK42FZ036 is a control board that operates at 24V, 3A, 465 mA, and 60 Hz frequencies. UL-recognized and CSA-certified.

The control board is suitable for furnace applications. The unit's function is to control the ignition, gas valves, flame sensor, and blower motor within the furnace during the heating cycle.

Check out the compatible Carrier, Bryant, and Payne furnace models:

59SC2A040S141110
59SC2A060S141110
59SC2A060S171114
59SC2A080S171116
59SC2A080S211120
59SC2A100S211114
59SC2A100S211120
59SC2A120S241120
59SC2B040S141110
59SC2B040S171112
59SC2B060S141112
59SC2B060S171116
59SC2B080S171116
59SC2B080S211120
59SC2B100S211116
59SC2B100S211122
59SC2B120S241122

59SC5A040S141110
59SC5A040S171112
59SC5A060S141110
59SC5A060S171114
59SC5A080S171116
59SC5A080S211120
59SC5A100S211114
59SC5A100S211120
59SC5A120S241120
59SC5A140S241120
912SA30040S14A-A
912SA30060S14A-A
912SA42060S17A-A
912SA42100S21A-A
912SA48080S17A-A
912SA60080S21A-A
912SA60100S21A-A

912SA60120S24A-A
912SB30040S14A-A
912SB36040S17A-A
912SB36060S14A-A
912SB48060S17A-A
912SB48080S17A-A
912SB48100S21A-A
912SB60080S21A-A
912SB66100S21A-A
912SB66120S24A-A
915SA30040S14A-A
915SA30060S14A-A
915SA36040S17A-A
915SA42060S17A-A
915SA42100S21A-A
915SA48080S17A-A
915SA60080S21A-A

915SA60100S21A-A
915SA60120S24A-A
915SA60140S24A-A
PG92SAS30040AAAA
PG92SAS42060BAAA
PG92SAS42100CAAA
PG92SAS48080BAAA
PG92SAS60080CAAA
PG92SAS60100CAAA
PG92SAS60120DAAA
PG92SBS30040AAAA
PG92SBS48060BAAA
PG92SBS48080BAAA
PG92SBS48100CAAA
PG92SBS60080CAAA
PG92SBS66100CAAA
PG92SBS66120DAAA

PG95SAS30040AAAA
PG95SAS42060BAAA
PG95SAS42100CAAA
PG95SAS48080BAAA
PG95SAS60080CAAA
PG95SAS60100CAAA
PG95SAS60120DAAA
PG95SAS60140DAAA
PG9YAA036060ABSS
PG9YAA036060ACSS
PG9YAA036080ABSS
PG9YAA036080ACSS
PG9YAA048080ABSS
PG9YAA048080ACSS
PG9YAA060100ABSS
PG9YAA060100ACSS

Voltage	24V
Amperage	3A
Frequency	60 Hz
Milliampere	465 mA
Approvals	UL-recognized and CSA-certified

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

What is the software version and the week year code of this board? I am looking for the latest software version (4) which is 4016 week year code or newer.

Asked on October 06, 2018 by Filipe from Mississauga Ontario

1 Answers

Have an answer? Click Here

We currently have stock on this Carrier control board. The date code on the HK42FZ036 boards is 1518M. These will currently ship form stock.

Replied on October 08, 2018 by Ori from Industrial Stores
