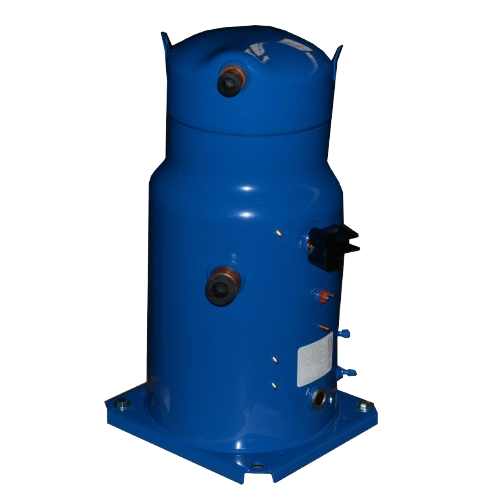

The Carrier P045-25071K Compressor & Tubing Kit is a genuine Factory Authorized Parts replacement kit designed for Carrier commercial HVAC systems. It includes a hermetic scroll compressor and matching tubing components for proper refrigerant routing and system service replacement.

This compressor kit is rated for 250,796 BTU output and is designed for R-410A refrigerant, 460 VAC, 3-phase, 60 Hz applications. Factory Authorized Parts are built to Carrier specifications to support correct fit, dependable operation, and proper system performance. Carrier Enterprise lists this item with a hermetic scroll compressor housing, 36.4 rated load amps, 215 locked rotor amps, POE oil, and sweat/braze suction and discharge connections.

The P045-25071K includes a 1-5/8" OD suction line and 1-1/8" OD discharge connection, both listed as sweat or braze connections.



Frequently Asked Questions

• What is the Carrier P045-25071K?

The Carrier P045-25071K is a genuine Factory Authorized Parts compressor and tubing kit for Carrier HVAC equipment. It is listed as a hermetic scroll compressor kit with tubing components for system replacement service.

• What refrigerant does the P045-25071K use?

The P045-25071K is designed for R-410A refrigerant.

• What voltage and phase is this compressor kit?

This compressor kit is rated for 460 VAC, 3 phase, 60 Hz operation.

• What is the BTU rating of the Carrier P045-25071K?

The listed BTU output is 250,796 BTU.

• Is this a scroll compressor?

Yes. The P045-25071K is listed as a hermetic scroll compressor.

• What connection sizes are listed for this kit?

The listed suction line size is 1-5/8 inch OD, and the discharge connection size is 1-1/8 inch OD. Both are listed as sweat or braze connections.

• What oil type does this compressor use?

The P045-25071K is listed with POE oil, with an initial oil charge of 226.55 oz.

• What are the electrical amp ratings?

The listed rated load amps are 36.4 RLA, and the locked rotor amps are 215 LRA.

• Is the P045-25071K compatible with all Carrier units?

Compatibility should be confirmed using the unit model and serial number before ordering. Some listings identify it for Carrier, Bryant, and Payne equipment, but final fitment should be verified before purchase.

• Is this an OEM replacement part?

Yes. Carrier Enterprise lists it under Factory Authorized Parts, which are described as designed to meet Carrier Corporation specifications.
