Carrier SYSTXZNSMS01 Infinity System Smart Sensor

Name: Carrier SYSTXZNSMS01 Infinity System Smart Sensor
Brand: Carrier
SKU: SYSTXZNSMS01
Price: 699.19 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Carrier SYSTXZNSMS01 Infinity System Smart Sensor

SKU: SYSTXZNSMS01

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 2 - 4 Weeks	$699.19 /ea	3

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

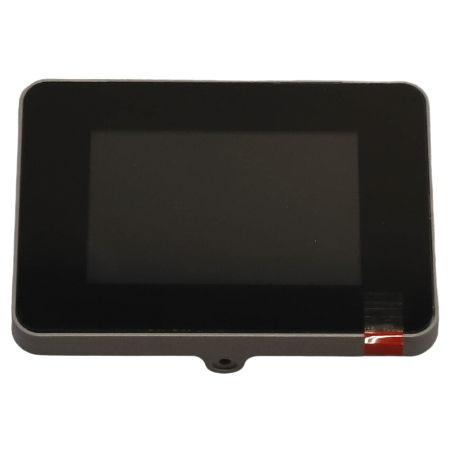

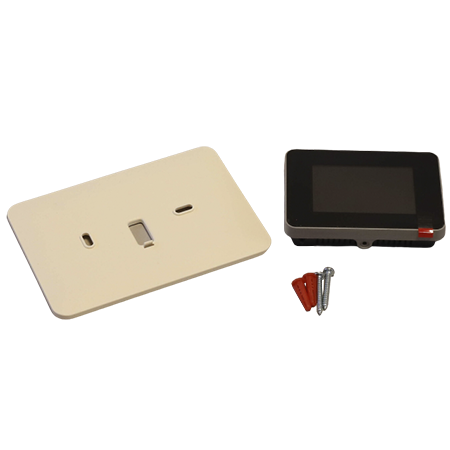

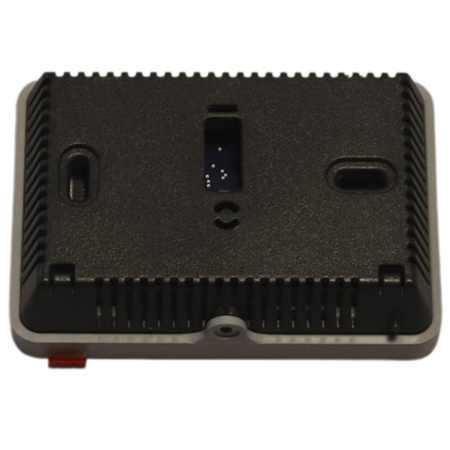

The SYSTXZNSMS01 is an infinity system smart sensor that operates at 24V. It has a continuous fan selection for AUTO, LOW, MEDIUM, and HIGH, and provides a display for outdoor and indoor humidity.

The smart sensor is an optional replacement for remote room sensors suitable for communicating zoning system applications. The unit is used to display temperature with a touch screen that can be adjusted based on the preferred temperature within the zone. It also has FAN, HOLD, and HOLD UNTIL functions available.

The SYSTXZNSMS01 is easy to install and can be home-run wired to the damper control module or daisy chained from wall control or other smart sensors through a 4-wire ABCD communication bus.

Voltage	24V
Fan Modes	AUTO, LOW, MED, HIGH
Keypad Lock Attempts	5 Attempts
Keypad Lock Time	5 Minutes
Maximum Override Time	24 Hours
Default Override Time	15 Minutes

Download Product Information:

Carrier SYSTXZNSMS01 Infinity System Smart Sensor Installation Instructions

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Can use an app to control this device?

Asked on October 18, 2024 by Tracy from Rockville MD

1 Answers

Have an answer? Click Here

The Carrier SYSTXZNSMS01 Smart Sensor works with the Infinity^® Zoning Systems. This is an optional upgrade for wired remote room sensors. If your Infinity^® Zoning System has an app, this sensor may be visible on the app once installed, however, according to the documentation, we are NOT able to see reference that this sensor is controlled by a WiFi app.

Replied on October 21, 2024 by Ori from Industrial Stores
