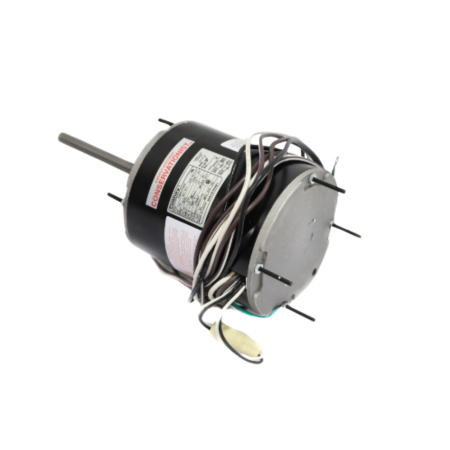

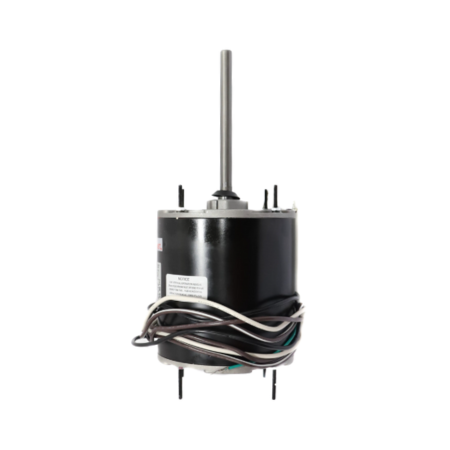

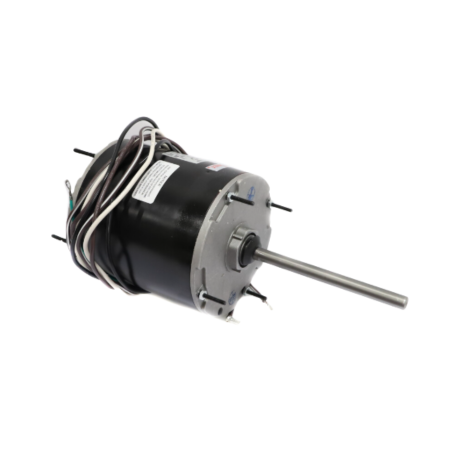

The Century Motors 5FE1076SV1 is a single-phase condenser fan motor rated at 3/4 HP, 575V, 60 Hz power ratings.  It is CSA Listed and UL Recognized, ensuring reliable safety compliance.

This features a 1/2" diameter x 6.5" shaft length with 48” leads.  It operates at 1075 RPM, offers reversible rotation at 1-speed, and is designed to withstand up to 60°C ambient temperature.

Built with a 48-frame made of rolled steel, ball bearings, automatic thermal protection, TEAO (Totally Enclosed Air Over) construction, and Class B insulation for durability and efficiency.

The 5FE1076SV1 is a direct replacement for the Trane MOT10510 motor and can be mounted in any orientation for flexible installation.
