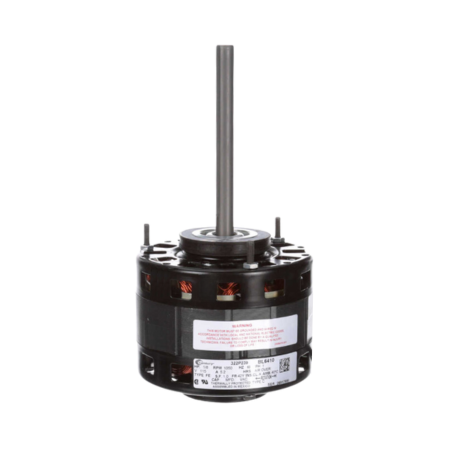

The Century Motors BL6410 is a single-phase blower fan motor with 36" leads operating at 5.2A, 1/8Hp, 60Hz, and 115V power ratings. This device has a 1/2" x 5 1/2" flat shaft that rotates at 1050 RPM, counterclockwise lead-end direction and 1-speed. UL Recognized.
The blower fan motor turns the system fan and moves air out of the unit. It features a 48Y frame, open enclosure, and sleeve bearing system. This device also has automatic overload protection and Class A insulation that can withstand 104°F (40°C) maximum ambient temperature.
The BL6410 is suitable for various HVAC applications. This component is mounted in a horizontal position with resilient rings.
| Rotation Direction | Counterclockwise Lead End |
|---|---|
| Rotation Speed | 1050 RPM |
| Motor Speed | 1-Speed |
| Number of Phase | Single-Phase |
| Power Supply | 5.2A, 1/8Hp, 60 Hz, 115V |
| Service Factor | 1.0 |
| Motor Design | Shaded Pole |
| Enclosure Type | Open |
| Duty | Continuous Air Over |
| Motor Orientation | Horizontal |
By David
from NANAIMO BC
Yes, I would recommend this product to a friend or co-worker

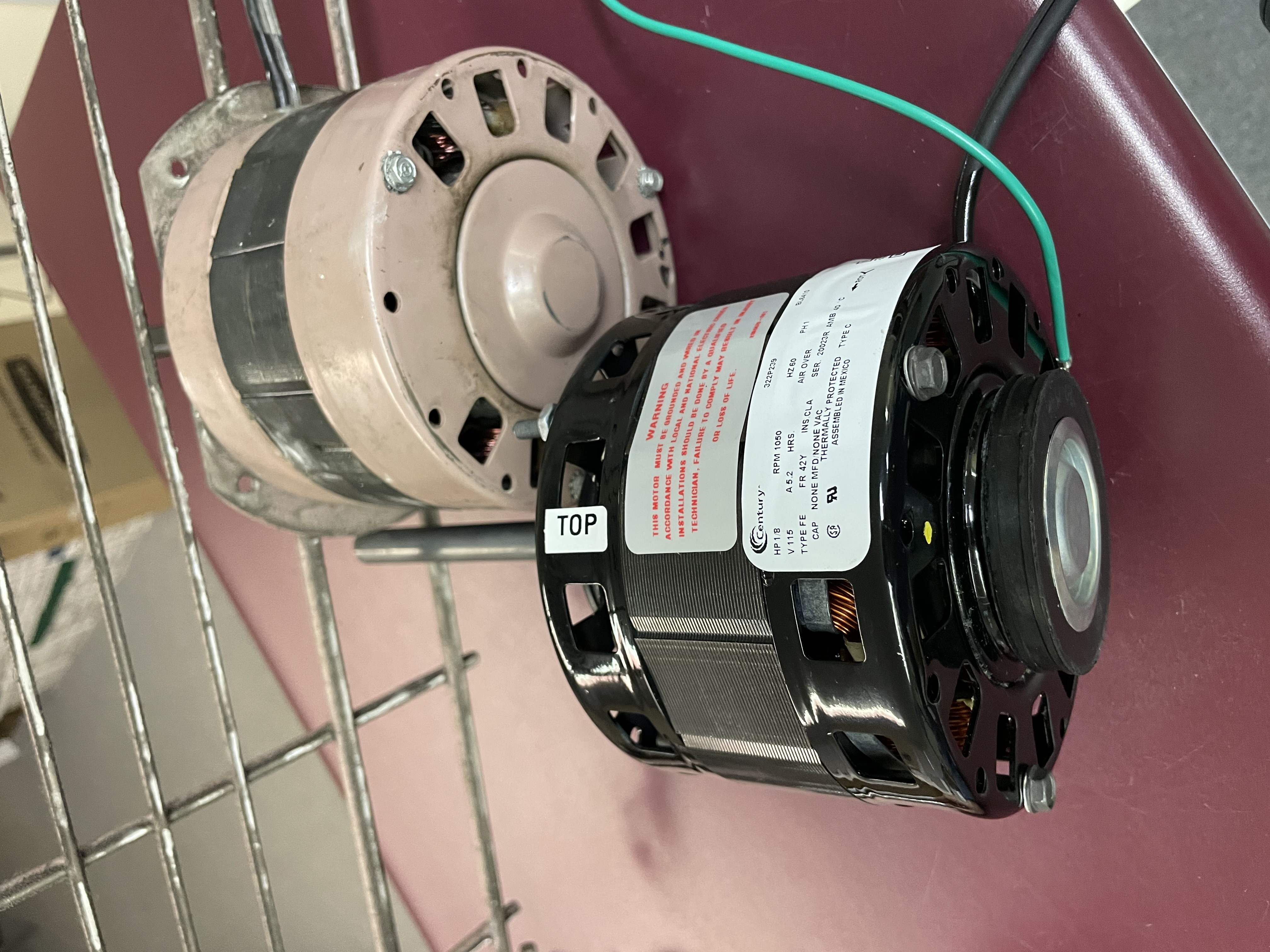

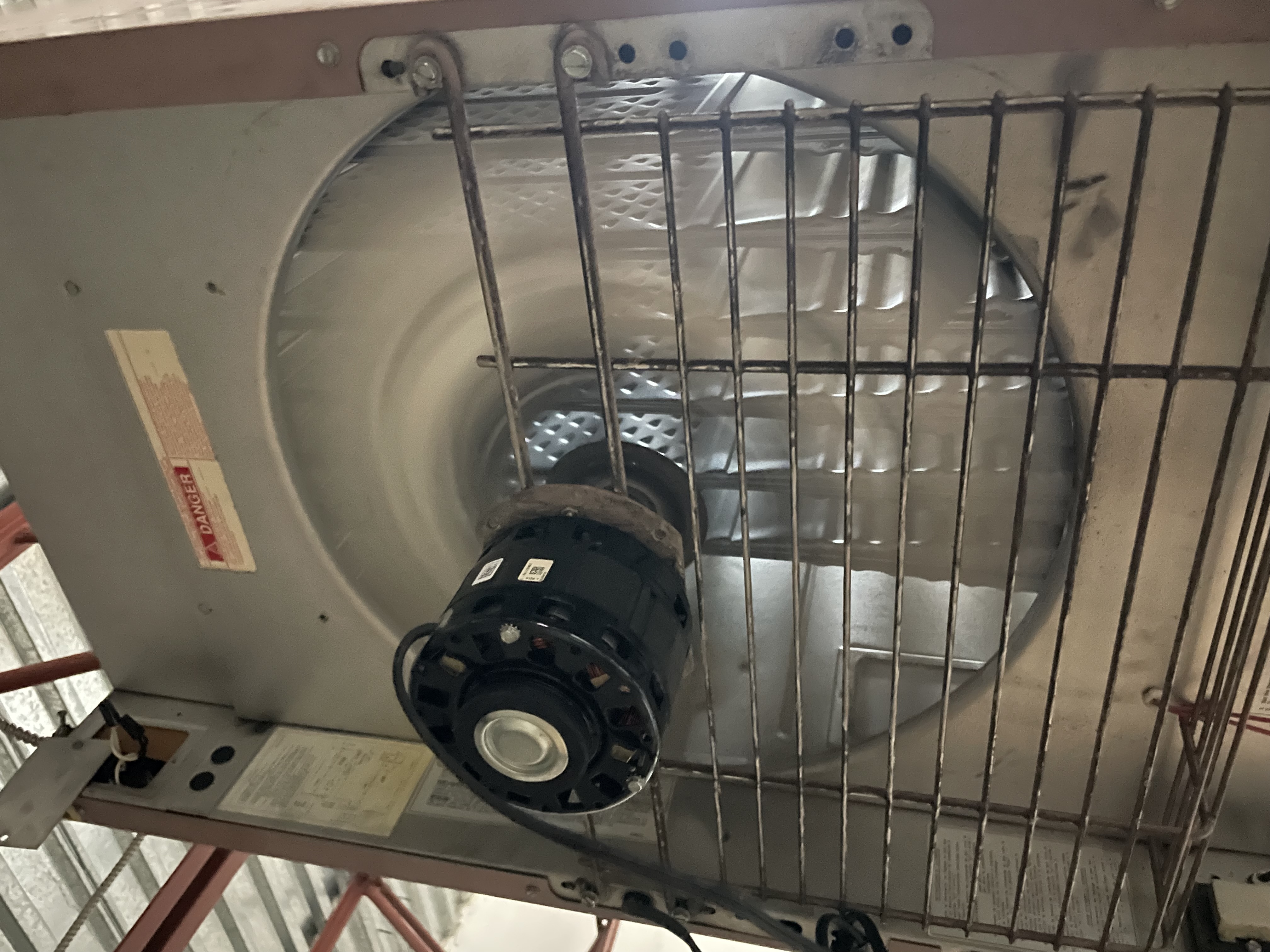

The fan motor on our older Reznor gas-fired unit heater died, so we called up a local repair company to come and fix it. After being billed for the call out and 3 hours labor, all they told us was that the motor was toast (which we already told them) and that it was so old/obsolete and that we'd have to wait 4-6 weeks for a replace motor (and be without heat that whole time). Then I found your company who had a motor in stock and was able to get it to me in about a week and for 1/2 the price of the one we were quoted. It was very easy, and we have heat again!
