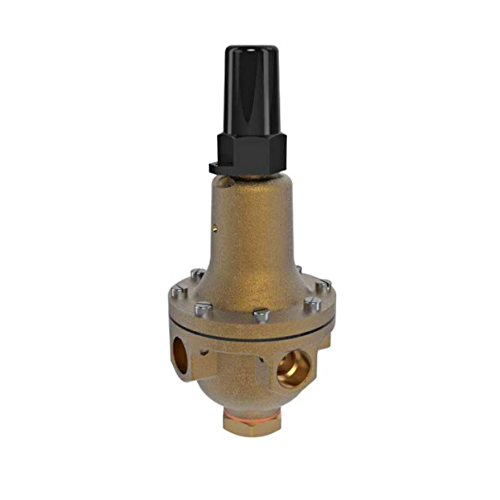

Cla-Val Products 7194311C Pressure Reducing Valve with 20-105 Pressure Adjustment Range. This valve has a threaded connection measuring 3/8". The valve body is made of bronze material and stainless steel for Trim. Mounting can be in any position.
The Cla-Val Model CRD Pressure Reducing Control automatically reduces a higher inlet pressure to lower outlet pressure. It is a direct-acting, spring-loaded, diaphragm type control that operates hydraulically or pneumatically. It may be used as a self-contained valve or as a pilot control for a Cla-Val main valve. It will hold a constant downstream pressure within very close pressure limits.
See also other Cla-Val Pressure Reducing Valve available:
| Model No. | Connection Size (in) | Adjustment Range |
| 7194303K | 3/8 | 15 - 75 PSI |
| 7194304H | 3/8 | 30 - 300 PSI |
| Connection Size | 3/8" |
|---|---|
| Connection Type | NPT |
| Adjustment Range | 20 - 105 PSI (46 - 242 Water FT.) |
| Factory Set Pressure | 20 - 105 set @ 60 psi |
| Factory Set Pressure (PSI per turn) | 12.0 |
