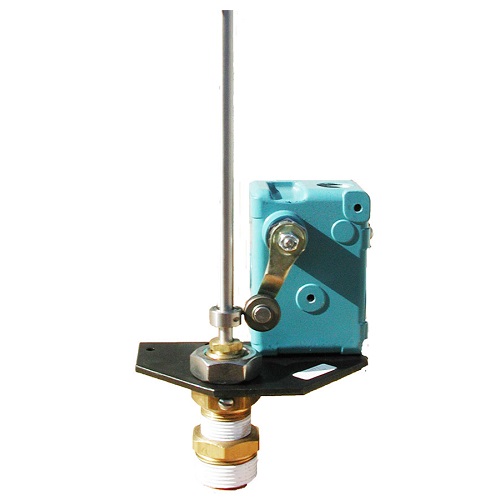

Cla-Val X105LCX Limit Switch Assembly Closed Valve Explosion Proof Enclosure
The Cla-Val Model X105L/X105L2 Limit Switch Assembly is a rugged, dependable and positive acting switch assembly actuated by the opening or closing of a Cla-Val control valve on which it is mounted. The single pole, double throw micro switch can be connected either to open or to close an electrical circuit when actuated. By loosening the allen screw on the actuating collar and raising or lowering the collar on the stem, the X105L is easily adjusted to signal that the valve has fully reached the desired position (open or closed).
Features:
| Materials | Aluminum switch housing Steel bracket and brass adapter Stainless steel stem |
|---|---|
| Electrical | 1/2" Conduit connection |
| Switch Type | NEMA 1,3,4, and13 |
| Switch Rating | UL/CSA rating: L96 |
| Switch Options | DPDT switches available on request UL/CSA Rating: L59, 10 amps |
Download Product Information:
