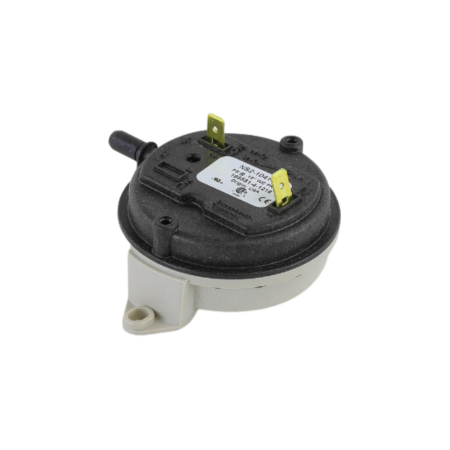

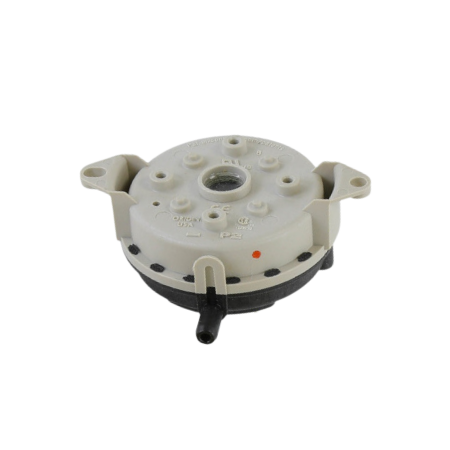

The Cleveland Controls NS2-1041-00 is an SPDT pressure-sensing switch with .12 w.c. fixed set point. This device has a glass-filled polycarbonate body, post-cured silicone sensing diaphragm, and integral snap-acting switch with 90° male quick-connect terminals.
The pressure-sensing switch senses positive, negative, or differential air pressure. This component features color-coded high and low-pressure ports for easy identification. It is sturdy, reliable, contaminant-free, and low-cost with high accuracy.
The Series NS2 is suitable for use with residential furnaces. The snap action switch can be actuated by a pressure or vacuum airflow or by a pressure or vacuum differential. It can be mounted vertically or custom angle (standard diaphragm).
| Application | Residential Furnaces |
|---|---|
| Body | Glass-Filled Polycarbonate |
| Diaphragm | Post-Cured Silicone |
| Terminals | Copper Alloy |
| Mounting | Standard Diaphragm: Vertical or Custom Angle |
| Maximum- Pressure Rating | .12" w.c. |
| Product Life | Minimum 100,000 Cycles |
| Operating Temperature Range | -40 to 88°C (-40 to 190°F) |
| Approvals | UL and CSA Listed |

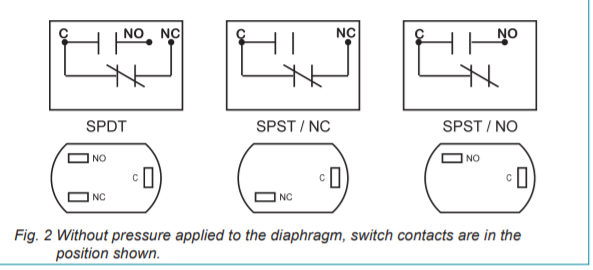

| Switch Type | SPDT |
Download Product Information:
Cleveland Controls Series NS2 Air Pressure Sensing Switches Data Sheet
