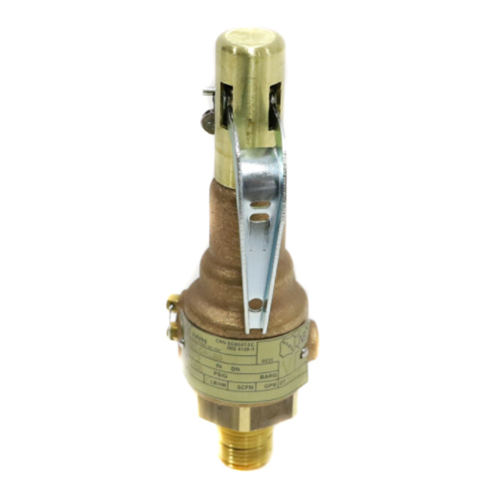

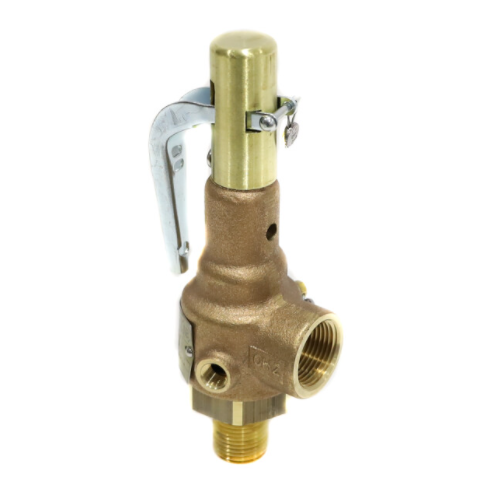

Conbraco 19-KDCA-100 Bronze Safety Valve Brass Trim and Teflon Seat D-Orifice 1/2" Section I Steam 100 PSI

Conbraco 19-KDCA-100 Bronze Safety Valve Brass Trim and Teflon Seat D-Orifice 1/2" Section I Steam 100 PSI
Images for general purposes only. Actual may be different than depicted.
Conbraco 19-KDCA-100 Bronze Safety Valve Brass Trim and Teflon Seat D-Orifice 1/2" Section I Steam 100 PSI Conbraco Industries 19-KDCA-100 Steam Pressure Relief valve Conbraco 19-KDCA-100 Bronze Safety Valves for Steam, Air & Gas Service

Conbraco 19-KDCA-100 Bronze Safety Valve Brass Trim and Teflon Seat D-Orifice 1/2" Section I Steam 100 PSI

SKU: 19-KDCA-100
Rating: (1)
Quantity Price Stock
2
Usually Ships 1 - 2 Weeks
$344.36     /ea
2
0
$0.00
0
$0.00
0
19-KDCA-100
The Conbraco 19-KDCA-100 is a 1/2" Bronze Safety Valve set in 100 PSI pressure.  The valve has Brass Trim and Teflon Seat D-Orifice.  The applicable maximum temperature of the valve is up to 406° F.

The 19 Series Conbraco Apollo Valves are designed to have a full bore double ring and high capacity.  It features a dampened lifting lever for anti-vibration and a replaceable soft seat.  Also, maintenance repairs of the valve are low-cost.

The valve can be used on various HVAC types of equipment such as steam boilers, compressors, cookers, sterilizers, distillers, receivers, dryers, and pressure piping systems.



Inlet Size 1/2" (15mm)
Outlet Size 3/4" (20mm)
Set Pressure 100 PSI
Material Brass
Spring Material Stainless Steel
ASME Code and Service Sect. I Steam
