Conbraco 19-KEDA-250 Bronze Safety Valve Brass Trim and Teflon Seat E-Orifice 3/4" Section I Steam 250 psi

Name: Conbraco 19-KEDA-250 Bronze Safety Valve Brass Trim and Teflon Seat E-Orifice 3/4" Section I Steam 250 psi
Brand: Conbraco
SKU: 19-KEDA-250
Price: 384.58 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Conbraco 19-KEDA-250 Bronze Safety Valve Brass Trim and Teflon Seat E-Orifice 3/4" Section I Steam 250 psi

SKU: 19-KEDA-250

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$384.58 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge*

I understand this product is non-cancel/non-returnable

Add to Cart

Add to Wishlist

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge

I understand this product is non-cancel/non-returnable

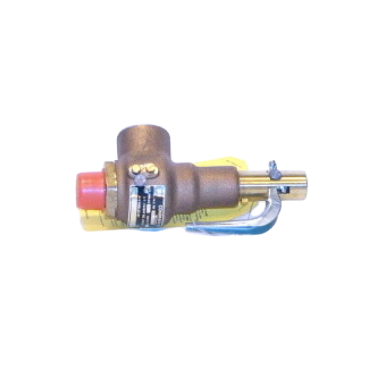

Conbraco 19-KEDA-250 is a Safety Relief Valve with 3/4 inch Male NPT Inlet x 1-inch Female NPT Outlet Connection. This valve is made of bronze material, Brass Trim and Teflon Seat. The valve pressure is set at 250 PSI and has a 2,664 Pounds Per Hour Capacity.

Conbraco 19 Series Bronze Safety Valves are excellent for overpressure protection of steam boilers, sterilizers, distillers, cookers, and pressure reducing stations. Pneumatic conveying equipment, air compressors, receivers, and dryers. They are National Board capacity certified, high capacity, ASME Section I and VIII. Available sizes are 1/2" through 2-1/2".

Base Model No.	Orifice Letter	Inlet Size NPT	ASME Code & Service	Set Pressure
19K Brass Trim/Teflon Seat	E	3/4"	Sect. I Steam	250 PSI

Inlet Size Male NPT	3/4"
Outlet Size	1"
Inlet Connection Type	Male NPT
Outlet Connection Type	Female NPT
Set Pressure	250 PSI
Maximum Temperature	406 F
Spring Material	Stainless Steel
SEAT Insert	PFA TEFLON

Download Product Information:

Conbraco 19 Series Bronze Safety Valve Technical Datasheet

Conbraco 19 Series Bronze Safety Valve Installation Instruction
