Conbraco 36-104-01 Water Pressure Reducing Valve 3/4" Union x FNPT 25-75 PSIG

Name: Conbraco 36-104-01 Water Pressure Reducing Valve 3/4" Union x FNPT 25-75 PSIG
Brand: Conbraco
SKU: 36-104-01
Price: 269.89 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Conbraco 36-104-01 Water Pressure Reducing Valve 3/4" Union x FNPT 25-75 PSIG

SKU: 36-104-01

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 2 - 3 Weeks	$269.89 /ea	2

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

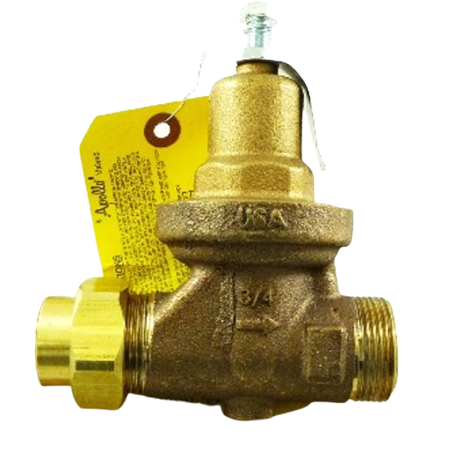

The 36-104-01 is a water pressure-reducing valve that has a 3/4" union threaded x 3/4" FNPT connection size. It has a 25 to 75 psi outlet adjustment range and factory set at 50 psi with up to 300 psi maximum pressure. CSA-certified.

The water pressure-reducing valve features a bronze body and spring cage construction that can operate up to 180°F temperatures. It is also designed with automatic pressure equalization that prevents pressure build-ups. The 36-004-01 repair kit accessory is also available.

The 36-104-01 is easy to install with a replaceable cartridge that provides quick maintenance without having to disengage the regulator from the pipeline.

Cartridge Material	Brass
Strainer Material	Stainless Steel
Seat Ring Material	Stainless Steel
Housing Material	Cast Bronze
Diaphragm Material	Nylon Reinforce Neoprene
Connection Size	3/4" Union Threaded x 3/4" FNPT
Outlet Adjustment Range	25 to 75 PSI
Maximum Inlet Pressure	300 PSI
Maximum Operating Temperature	180°F
Factory Set Pressure	50 PSI

Download Product Information:

Conbraco 36-104-01 Water Pressure Reducing Valve Installation Instructions

Conbraco 36-104-01 Water Pressure Reducing Valve Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I bought this product but label say do not use at home for potable water , that’s correct?

Asked on March 03, 2019 by Ange from Cayey Puerto Rato co

1 Answers

Have an answer? Click Here

You should always defer to any warning labels that accompany the valve. You can look through the technical datasheets that are available for download on the product detail page. In the literature there is a warning for California customers regarding chemicals in the valve, however the warnings do not specifically address potable water installation. You can look for more information regarding these valves at www.apollovalves.com who is the manufacturer.

Replied on March 04, 2019 by Ron from Industrial Stores
