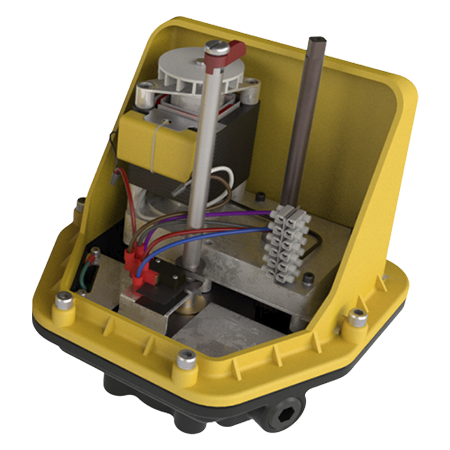

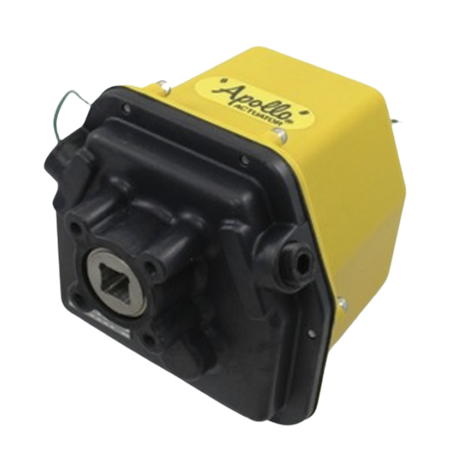

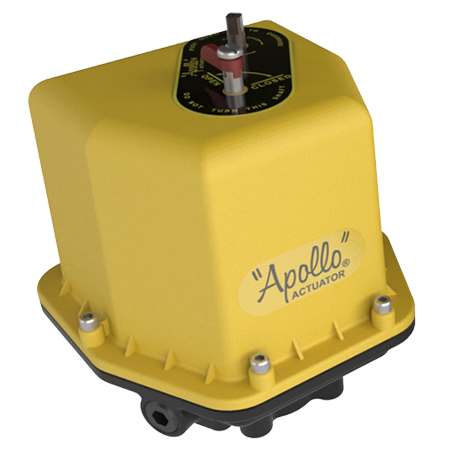

The AE-800-10 is an actuator that has 800 in-lbs breakaway torque output and operates at 115V. It has a 1/2" conduit connection, 20 seconds cycle time, and 32˚F to 150˚F operating temperature with an anodized die-cast aluminum housing that protects from damage.
The AE series actuator features a broad temperature range from -40 to 150°F when it is attached to a 15-watt heater and thermostat. The unit provides excellent performance with (± 0.1°) 450 points of resolution on a 1/4" turn valve.
The AE-800-10 is easy to install with a 12-position pre-wired terminal strip to connect to remote open or closed position indicators.
| Voltage | 115V |
|---|---|
| Torque | 800 in-lbs |
| Conduit Connection Size | 1/2" |
| Cycle Time | 20 seconds |
| Operating Temperature | 32˚F to 150˚F |
| Resolution | (± 0.1°) 450 points |
| Duty Cycle | 25% |
| Current | 74 amp |
| Temperature Range with Heater & Thermostat | -40˚F to 150˚F |
| Thermal Protection | Self-resetting |
