Copeland Compressor 577-0056-06 Liquid Rec Tank

Name: Copeland Compressor 577-0056-06 Liquid Rec Tank
Brand: Copeland Compressors
SKU: 577-0056-06
Price: 371.99 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Copeland Compressor 577-0056-06 Liquid Rec Tank

SKU: 577-0056-06

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$371.99 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

The 577-0056-06 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Copeland Compressor 577-0056-04 Liquid Rec Tank	577-0056-04 Brand Copeland Compressors
Copeland Compressor 577-0056-05 Liquid Receiver Control Tank	577-0056-05 Brand Copeland Compressors

Add to Cart

Add to Wishlist

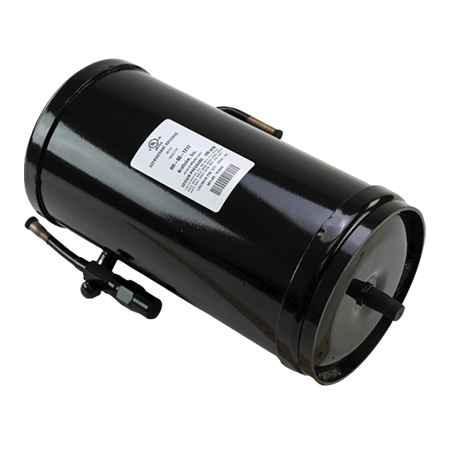

The 577-0056-06 is a liquid receiver tank that has a 1/4" connection size with 3/8" inlet and outlet connections. The tank can withstand pressure for up to 500 psi. UL-listed.

Check out the suitable refrigerant types:

R12
R22
R23
R114
R123
R134A
R410A
R401B
R402A

R402B
R404A
R406A
R407A
R407B
R407C
R409A
E410A
R448A

R449A
R450A
R452A
R500
T502
R507
R513A

The 577-0056-06 directly replaces part number 577-0056-04.

Maximum Pressure	500 psi
Connection Size	1/4"
Inlet Connection Size	3/8"
Outlet Connection Size	3/8"
Approvals	UL-listed

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

what are the receiver dimensions? What type of refrigerant?

Asked on December 15, 2017 by john from virginia

1 Answers

Have an answer? Click Here

The dimensions are approximate as we do not have a technical datasheet for the tank. It is approximately 12" long with about a 4.5"diameter (not including the connection fittings mounted on the tank).
It will run almost all refrigerants R12, R22, R134A, R404A, R407C & R410A

Replied on December 15, 2017 by Ron from Industrial Stores
