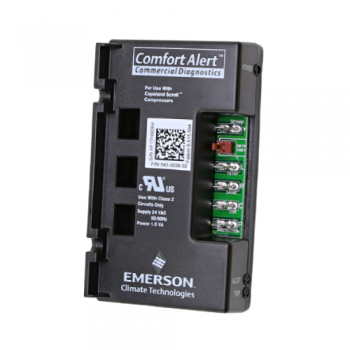

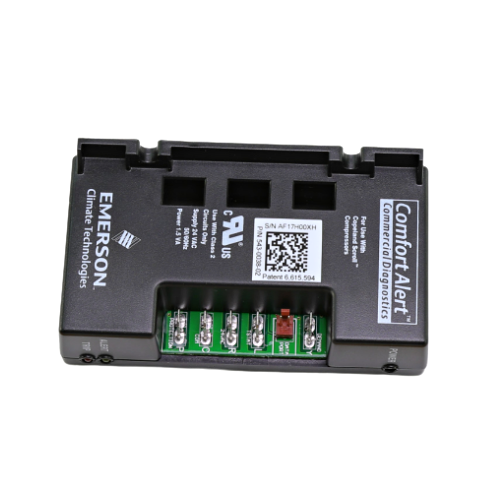

Copeland Compressor 943-0038-02 Comfort Alert Kit
Copeland Comfort Alert is used for diagnostics and quick monitoring of vital data coming from the Copeland Scroll compressor. Provides fast service maintenance wherein you can easily detect or know the error that causes the cooling system malfunction such as common electrical problems, compressor defects, and broad system faults. The device features an LED light which indicates a specific error or problem that helps or guides to detect the root cause of a problem. The LED flash indicates a specific error or problem
Easy to install on condensing units with an electrical box and there is no need for external sensors.

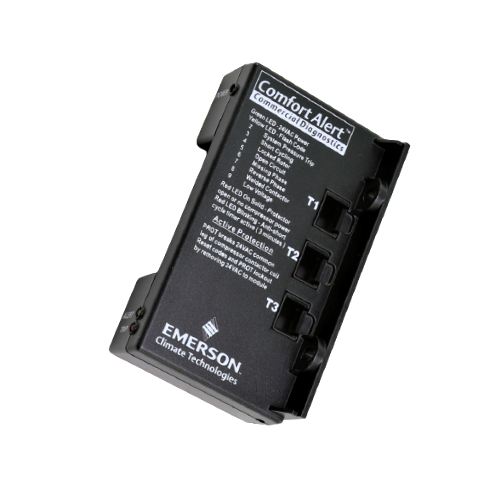

| ComfortAlert LED INDICATOR | |
| LED Color | Description |
| Green LED | 24 VAC Power |
| Yellow LED | FLASH CODES |
| 2 | System Pressure Tip |
| 3 | Short Cycling |
| 4 | Locked Rotor |
| 5 | Open Circuit |
| 6 | Missing Phase |
| 7 | Reverse Phase |
| 8 | Welded Contactor |
| 9 | Low Voltage |
| Red LED On Solid | Protector open or no compressor power |
| Red LED Blinking | Anti-short cycle timer active (3 minutes) |
| Supply Voltage | 24 VAC at 50/60 HZ |
|---|---|
| Power Voltage | 1.5 VA |
| Certification | UL Listed |
