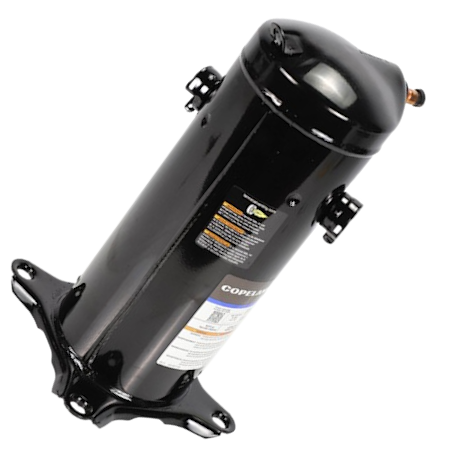

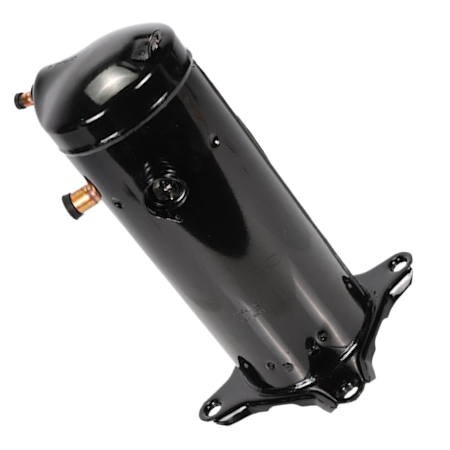

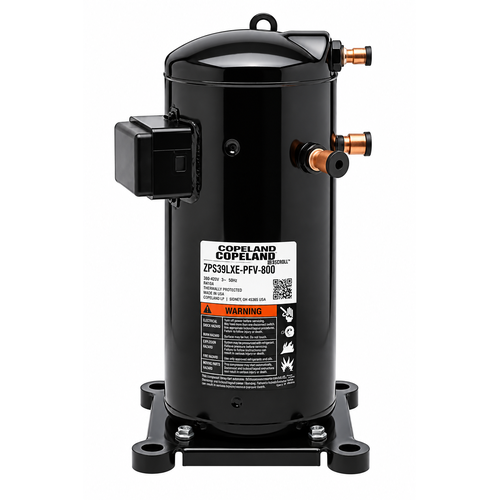

The Copeland ZPS39LXE-PFV-800 is a robust single-phase scroll compressor designed for modern air conditioning and heat pump systems.  It operates on 208/230 V, 60 Hz power and uses R-410A refrigerant.  It also features a two-step capability, offering energy-efficient operation and improved capacity control under varying load conditions.

This compressor delivers approximately 39,000 BTU/hr cooling capacity and utilizes durable POE oil lubrication, making it suitable for both residential and light commercial applications.  Its design includes an internal motor protector and standard 7/8" suction and ½" discharge stubs, facilitating integration into HVAC systems.

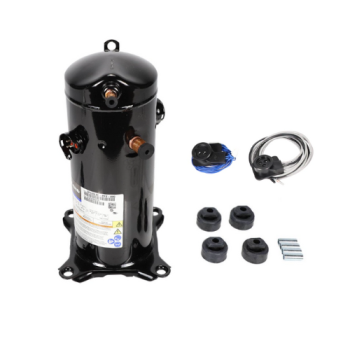

When paired with the HH660016 Dtsensor Kit, the Copeland ZPS39LXE-PFV-800 serves as a direct replacement for the P032-3722 compressor.

The replaces the following part numbers:

Frequently Asked Questions

• What type of compressor is the Copeland ZPS39LXE-PFV-800?

The Copeland ZPS39LXE-PFV-800 is a hermetic two-stage scroll compressor designed for residential and light-commercial air-conditioning applications.

• Which refrigerant does this compressor use?

This compressor is designed for use with R-410A refrigerant.

• What is the voltage and phase rating?

The ZPS39LXE-PFV-800 operates on 208/230 VAC, single-phase, 60 Hz electrical power.

• What is the nominal cooling capacity?

The compressor has a nominal cooling capacity of approximately 39,000 BTUH, equal to about 3.25 tons.

• What does two-stage operation mean?

Two-stage operation allows the compressor to run at full capacity or at a reduced capacity of approximately 67%. This helps compatible HVAC systems adjust to changing cooling demand.

• What are the suction and discharge connection sizes?

The compressor uses a 7/8-inch OD suction connection and a 1/2-inch OD discharge connection.

• What type of oil does the compressor use?

The ZPS39LXE-PFV-800 uses polyolester oil.

• Can this compressor replace any R-410A compressor?

No. Compatibility must be confirmed using the original compressor model, electrical ratings, refrigerant type, capacity, mounting configuration, connection sizes, and equipment manufacturer requirements.

• Is this compressor supplied pre-charged with refrigerant?

The available product information does not confirm that refrigerant is included. Refrigerant and installation materials should be verified before ordering.

• Who should install this compressor?

Installation should be completed by a qualified HVAC technician familiar with R-410A systems, refrigerant recovery, brazing, evacuation, electrical testing, and system commissioning.

• Does this compressor include a warranty?

Warranty coverage may depend on the seller, application, installation, and Copeland warranty requirements. Confirm the applicable compressor warranty policy before purchase.

• What should be checked before ordering?

Confirm the model number, voltage, phase, frequency, refrigerant, cooling capacity, connection sizes, mounting arrangement, and system compatibility before placing an order.
