Copeland Compressor ZR160KCE-TE5-950 Scroll Compressor 200-220V 160,000Btu 3-Phase R407C

Name: Copeland Compressor ZR160KCE-TE5-950 Scroll Compressor 200-220V 160,000Btu 3-Phase R407C
Brand: Copeland Compressors
SKU: ZR160KCE-TE5-950
Price: 5492.46 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Copeland Compressor ZR160KCE-TE5-950 Scroll Compressor 200-220V 160,000Btu 3-Phase R407C

SKU: ZR160KCE-TE5-950

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$5,492.46 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

The ZR160KCE-TE5-950 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Copeland Compressor ZR160KCE-TW5-950 Scroll Compressor 200-220V 160,000Btu 3-Phase R407C	ZR160KCE-TW5-950 Brand Copeland Compressors

Add to Cart

Add to Wishlist

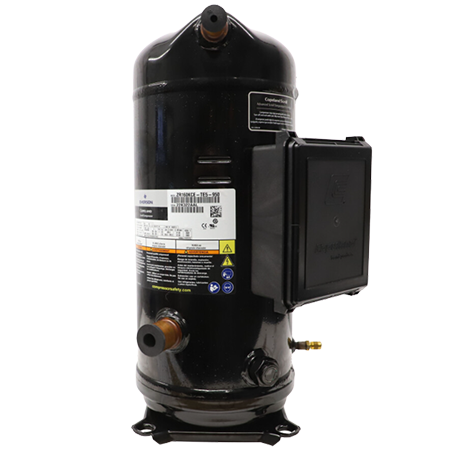

The ZR160KCE-TE5-950 is a three-phase scroll compressor that has an electrical rating of 200 to 230V and 50/60 Hz. It has a 160,000 BTUH cooling capacity with a 1-3/8" stub suction and a 7/8" stub discharge connection size. CE-marked and UL-recognized.

The scroll compressor is suitable for R-22, R407C, and R134A refrigerants. The unit features externally enhanced motor protection and hermetic housing that provides excellent durability and efficiency. The 971-0065-04 protector kit 24V module replacement part is also available.

Check out the available accessories:

Part No.	Description	Part No.	Description

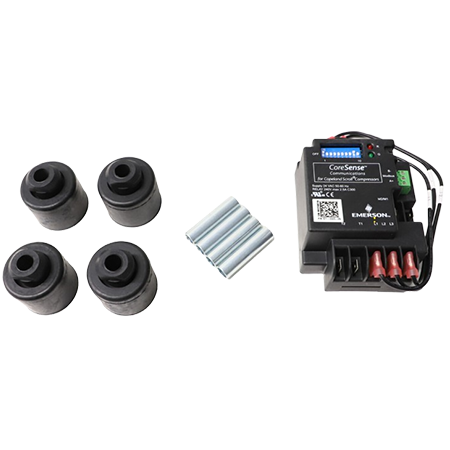

020-0028-02	Suction Valve Gasket	921-0100-00	Connector Kit

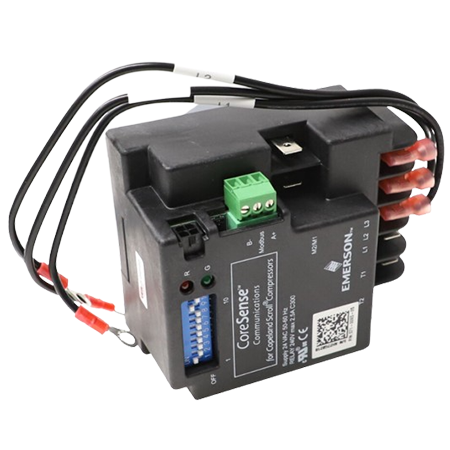

020-0028-03	Nonstick Seal Stub To Rotolock	971-0064-05	Coresense
510-0370-00	Discharge 1/4" Schrader Fittng	971-0641-00	Motor Protector
527-0116-00	Vibration Absorber Grommet	971-0641-01	Protector Kit
910-0715-00	Oil Adjustment Valve Kit	998-0010-00	Sightglass Kit
918-0047-00	Crankcase Heater 120V	998-0034-08	Rotalock to Stub Tube Adapter Kit 1-1/4"-12 Thread
918-0047-01	Crankcase Heater 240V	998-0034-13	Rotalock to Stub Tube Adapter Kit 1-3/4"-12 Thread
918-0047-02	Crankcase Heater 480V	998-0071-02	Discharge Line Thermostat
918-0047-03	Crankcase Heater 575V	998-0510-46	Service Valve Kit 1-3/8"
998-0510-90	Rotolock Service Valve Kit	998-E022-01	POE Oil 1-Gallon
998-7029-00	Heater Junction Box Kit

Number of Phases	Three-Phase
Voltage	200 to 230V
Cooling Capacity	160,000 BTUH
Refrigerants	R-22, R407C, and R134A
Approvals	CE-marked and UL-recognized
Suction Connection Size	1-3/8" Stub
Discharge Connection Size	7/8" Stub
Frequency	50/60 Hz
Motor Protection	External Enchanced
Compressor Housing	Hermetic

Download Product Information:

Copeland Compressor ZR160KCE-TE5-950 Scroll Compressor Safety Instructions

Copeland Compressor ZR160KCE-TE5-950 Scroll Compressor Technical Datasheet

Copeland Compressor ZR160KCE-TE5-950 Scroll Compressor Catalog

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Buenas tardes este compresor viene con aceite poli?ster....y puede trabajar con el Refrigerante R22 y su protecci?n es interna? Gracias

Asked on August 16, 2021 by Marcos from Guayaquil, Ecuador

1 Answers

Have an answer? Click Here

ENGLISH

It seems that this compressor will work with R-22. However, anytime a refigereant change is made in a system, you should flush out the system properly prior to making the change and ALWAYS contact a local licensed Refrigeration professional to confirm as every application is different and should be installed in accordance with the local rules and regulation by the Authority Having Jurisdiction.

Please see the attached Emerson (Copeland) engineering bulletin in the "Technical Data" web page above.

On page 4, it says "Figure 2 illustrates the operating envelopes for the ZR*KC and ZP*KC compressors with R-22/R407C/R-134a and R-410A respectively. The operating envelopes represent operating conditions with 20F° (11K) superheat in the return gas. The steady-state operating condition of the compressor must remain inside the prescribed operating envelope. Excursions outside of the envelope should be brief and infrequent. Use of refrigerants other than R-22, R-407C, or R-134a with ZR*KCE and R-410A with ZP*KCE voids the
compressor UL recognition."

On the same page, it also advises that "A high pressure control must be used in all applications. These models of Copeland Scroll compressors do not have internal pressure relief valves. To ensure safe operation, a high pressure control must be used in all applications."

Replacement compressor POE oil available. Click here to learn more.

SPANISH

Parece que este compresor funcionará con R-22. Sin embargo, cada vez que se realiza un cambio de refrigerante en un sistema, debe limpiar el sistema correctamente antes de realizar el cambio y SIEMPRE comunicarse con un profesional de refrigeración con licencia local para confirmar que cada aplicación es diferente y debe instalarse de acuerdo con las reglas locales y regulación por parte de la Autoridad Competente.

Consulte el boletín de ingeniería de Emerson (Copeland) adjunto en la página web "Datos técnicos" anterior.

En la página 4, dice "La Figura 2 ilustra los envolventes de funcionamiento para los compresores ZR * KC y ZP * KC con R-22 / R407C / R-134a y R-410A respectivamente. Los envolventes de funcionamiento representan las condiciones de funcionamiento con 20F ° (11K ) sobrecalentamiento en el gas de retorno. La condición de funcionamiento de estado estable del compresor debe permanecer dentro de la envolvente de funcionamiento prescrita. Las excursiones fuera de la envolvente deben ser breves y poco frecuentes. Uso de refrigerantes distintos del R-22, R-407C o R -134a con ZR * KCE y R-410A con ZP * KCE anula la
compresor de reconocimiento UL ".

En la misma página, también advierte que "Se debe usar un control de alta presión en todas las aplicaciones. Estos modelos de compresores Copeland Scroll no tienen válvulas de alivio de presión internas. Para garantizar un funcionamiento seguro, se debe usar un control de alta presión en todas las aplicaciones. . "

Aceite POE para compresor de repuesto disponible. Clic aquí para saber más.

Replied on August 17, 2021 by Ori from Industrial Stores
