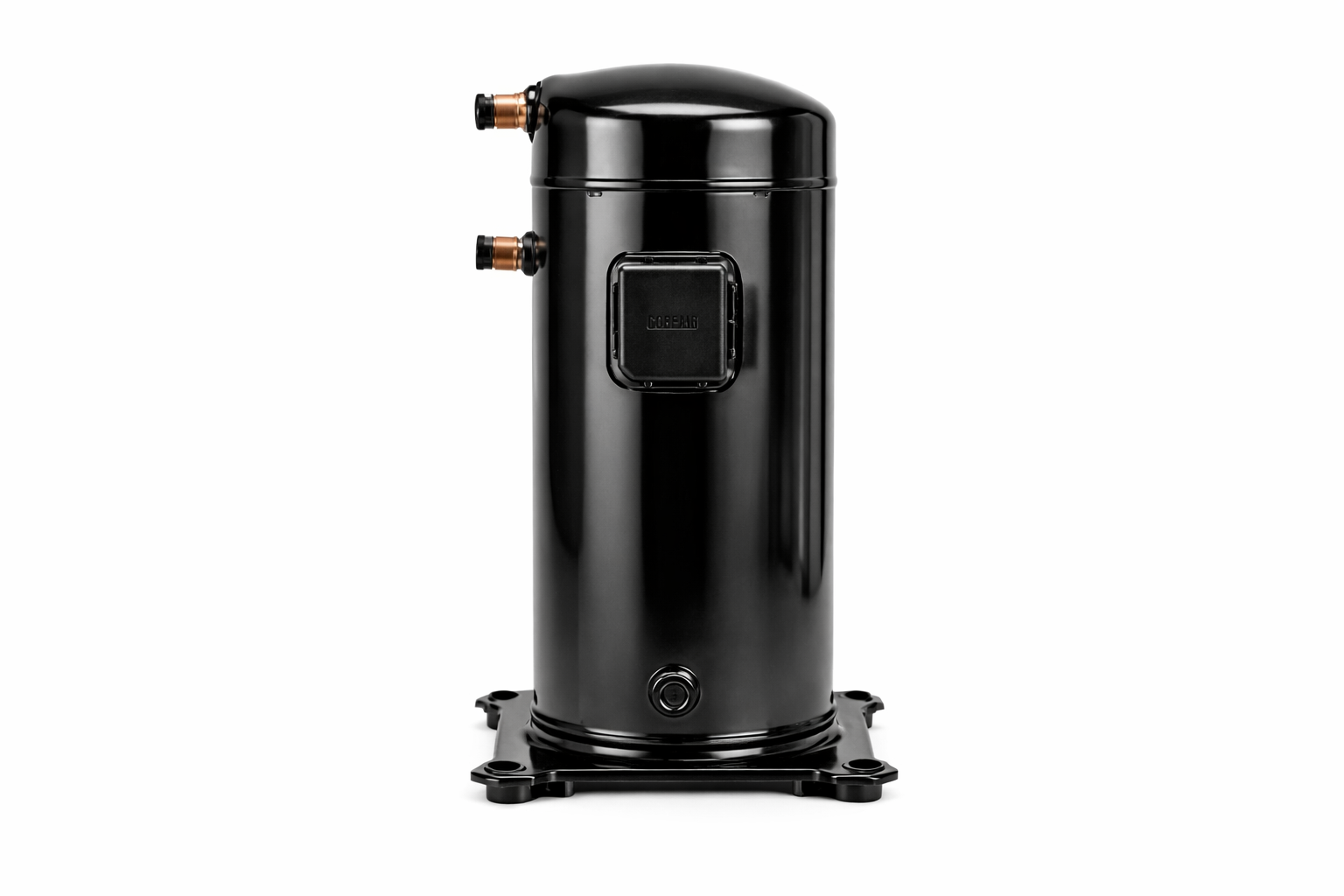

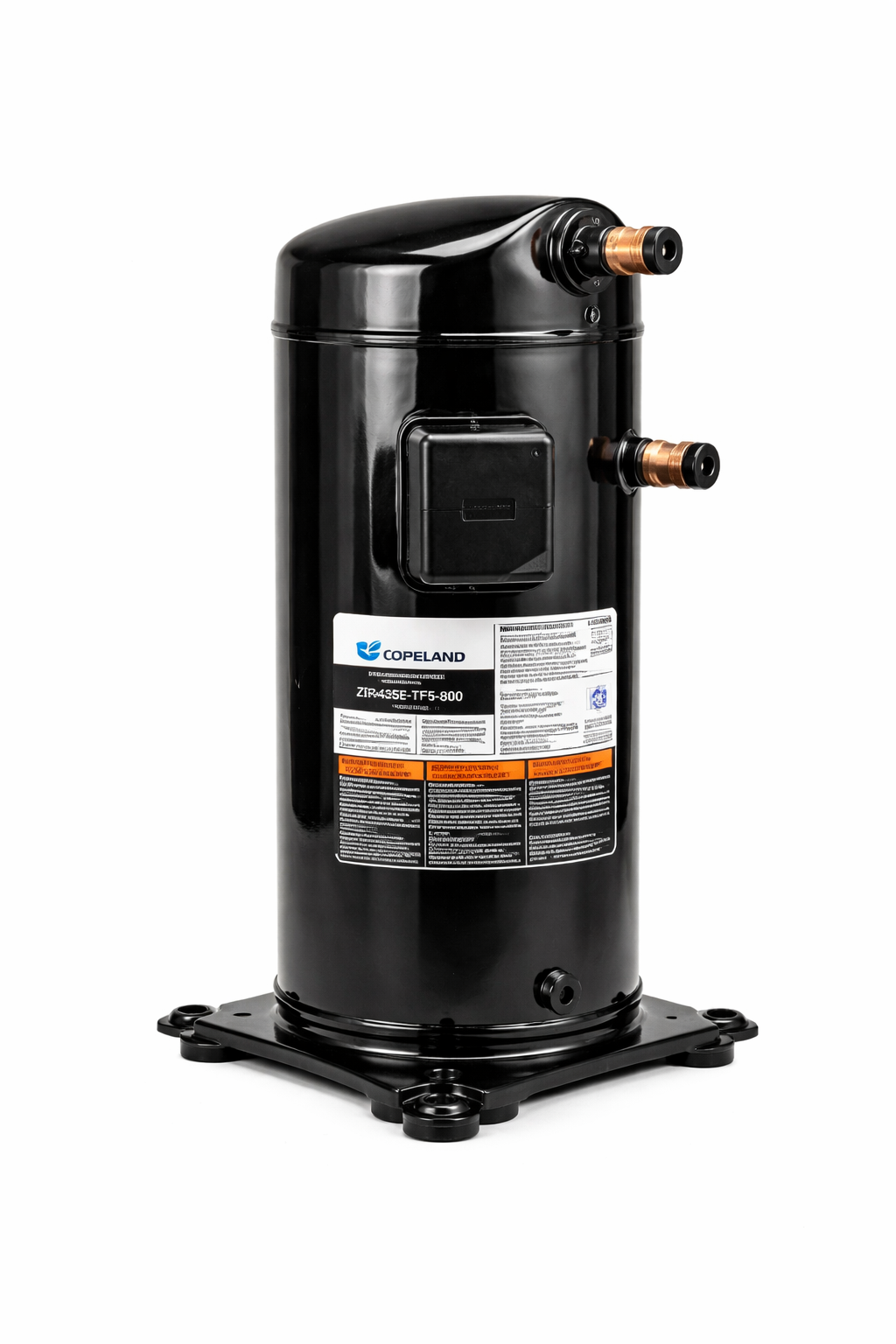

Copeland ZR42K5E-TF5-800 Scroll Compressor 200/220V 3-Phase 42,200 BTU 60 Hz 3.5 Ton

Name: Copeland ZR42K5E-TF5-800 Scroll Compressor 200/220V 3-Phase 42,200 BTU 60 Hz 3.5 Ton
Brand: Copeland Compressors
SKU: ZR42K5E-TF5-800
Price: 2225.44 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Copeland ZR42K5E-TF5-800 Scroll Compressor 200/220V 3-Phase 42,200 BTU 60 Hz 3.5 Ton

SKU: ZR42K5E-TF5-800

UNSPSC: 40151607

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 6 Weeks Usually Ships 3 - 6 Weeks	$2,225.44 /ea	Usually Ships 3 - 6 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

The ZR42K5E-TF5-800 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Danfoss 120U1096 Scroll Compressor 208/230 R134A	120U1096 Brand Danfoss
Copeland Compressor ZR42K5-TF5-800 Scroll ZRK5 Compressor 200-220V 3-Phase R407C 42000 Btu	ZR42K5-TF5-800 Brand Copeland Compressors

*Warranty Policy - Compressors

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from Industrial Stores.

Add to Cart

Add to Wishlist

Copeland ZR42K5E-TF5-800 scroll compressor is designed for commercial HVAC and air conditioning applications with a 42,200 BTU/hr capacity, or approximately 3.5 tons. Built for 208-230V, 3-phase, 60 Hz systems, it helps deliver efficient refrigerant compression, dependable cooling performance, and reduced vibration.

It is primarily compatible with R-22 refrigerant and is often suitable for R-407C applications, while the factory pre-charge of Polyol Ester (POE) oil supports use with R-22 as well as certain HFC replacement refrigerants.

This compressor features a 7/8" sweat suction connection, 1/2" sweat discharge connection, and a standard 7.5" x 7.5" base mounting pattern for fitment in compatible systems.

The ZR42K5E-TF5-800 is a direct replacement for 120U1096, making it a reliable solution for qualified replacement applications.

Number of Phases	3-Phase
Cooling Capacity	42,200 BTU
Voltage	208 to 230V
Frequency	50/60 Hz
Suction Connection Size	7/8" Stub
Discharge Connection Size	1/2" Stub
Refrigerants	R-22, R-407C
Horsepower	3.5 HP
Maximum Operating Current	15.5A
Oil Charge	42 oz

Download Product Information:

Copeland Compressor ZR42K5E-TF5-800 Scroll ZRK5 Compressor Cross Reference Guide

Copeland Compressor ZR42K5E-TF5-800 Scroll ZRK5 Compressor Brochure

Copeland Compressor ZR42K5E-TF5-800 Scroll ZRK5 Compressor Technical Datasheet

Copeland Compressor ZR42K5E-TF5-800 Scroll ZRK5 Compressor Nomenclature
