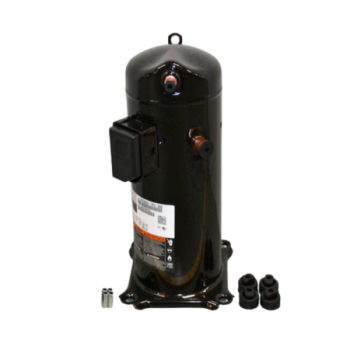

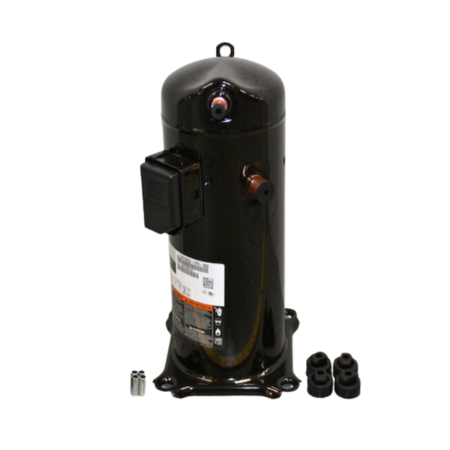

The Copeland ZR72KCE-TF5-950 is a 3-phase scroll compressor that operates with 208/230V at 50/60 Hz. This device uses R22 refrigerant and can handle up to 73,500 btu capacity. UL Listed.
Features:
It is suitable for use in residential and commercial air conditioners, heat pumps, or close unit applications. The ZR72KCE-TF5-950 directly replaces Tecumseh AGA5573EXT and York S1-015-03251-001 Compressor. If used as replacement for York S1-015-03251-001, you may need York S1-373-39504-009 GEN2 Conversion Kit.
| Load Capacity | 73,500 btu |
|---|---|
| Oil Type | Polyol Ester Oil |
| Frequency | 50/60 Hz |
| Voltage | 208/230V |
| Number of Phase | 3-Phase |
| Compressor Type | Scroll |
| Compressor Housing | Hermetic |
| Refrigerant | R22 |
| Application | Air Conditioners and Heat Pumps |
| Protection | Internal Inherent Protection |
