Copeland Compressor ZRD61KCE-TFD-961 Digital Scroll Compressor 460V 3-Phase

Copeland Compressor ZRD61KCE-TFD-961 Digital Scroll Compressor 460V 3-Phase
Images for general purposes only. Actual may be different than depicted.
Copeland Compressor ZRD61KCE-TFD-961 Digital Scroll Compressor 460V 3-Phase

Copeland Compressor ZRD61KCE-TFD-961 Digital Scroll Compressor 460V 3-Phase

SKU: ZRD61KCE-TFD-961
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$2,314.01     /ea
Usually Ships 2 - 4 Weeks

Shipping Note

Ships via LTL ( Truck )

*Warranty Policy - Compressors
0
$0.00
0
$0.00
0
ZRD61KCE-TFD-961
The Copeland Compressor ZRD61KCE-TFD-961 is a 3-phase digital scroll compressor.

The Copeland ZRD61 Digital Scroll Compressors are designed for a variety of applications, such as on units requiring accurate control of temperature and humidity, used on outside air units, units using hot gas bypass for capacity control, VAV applications, and on compressor systems requiring modulation.  The ZRD61 can modulate down to 10% of full load, this is achieved with the use of a normally closed (de-energized) solenoid valve.

ZRD61 Compressor Accessories:

MODEL NUMBER DESCRIPTION
998-0090-01 Modulation Valve & Tubing Kit
943-0024-01  Copeland Scroll Digital Compressor Controller
943-0175-00 Emerson Commercial Comfort Controller
998-0061-17 Modulation Valve & 220V Coil
985-0199-00 Discharge Line Thermistor
980-7000-00 Commercial Comfort Controller, Modulation Valve, 24V Coil, & Tubing Kit



Number of Phase 3ph
Horsepower 5hp
Voltage 460V
Cooling Capacity 14,950W
Power Input 4550
Current 8.1
Refrigerant R22 - R407C
Refrigerant Charge Limit 10lbs (4.8kg)

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
does this compressor model # Copeland zrd61kce-tfd-961 have Rotolock or sweat connections? also is there a port on top of compressor fro unloader?
Asked on March 10, 2023 by Paul from New York 10036
1 Answers

Have an answer? Click Here

A:
According to the Emerson website, the Bill of Materials for all four versions, based on capacity and or voltage, of the ZRD61KCE-TFD have Rotolock suction and discharge connections.

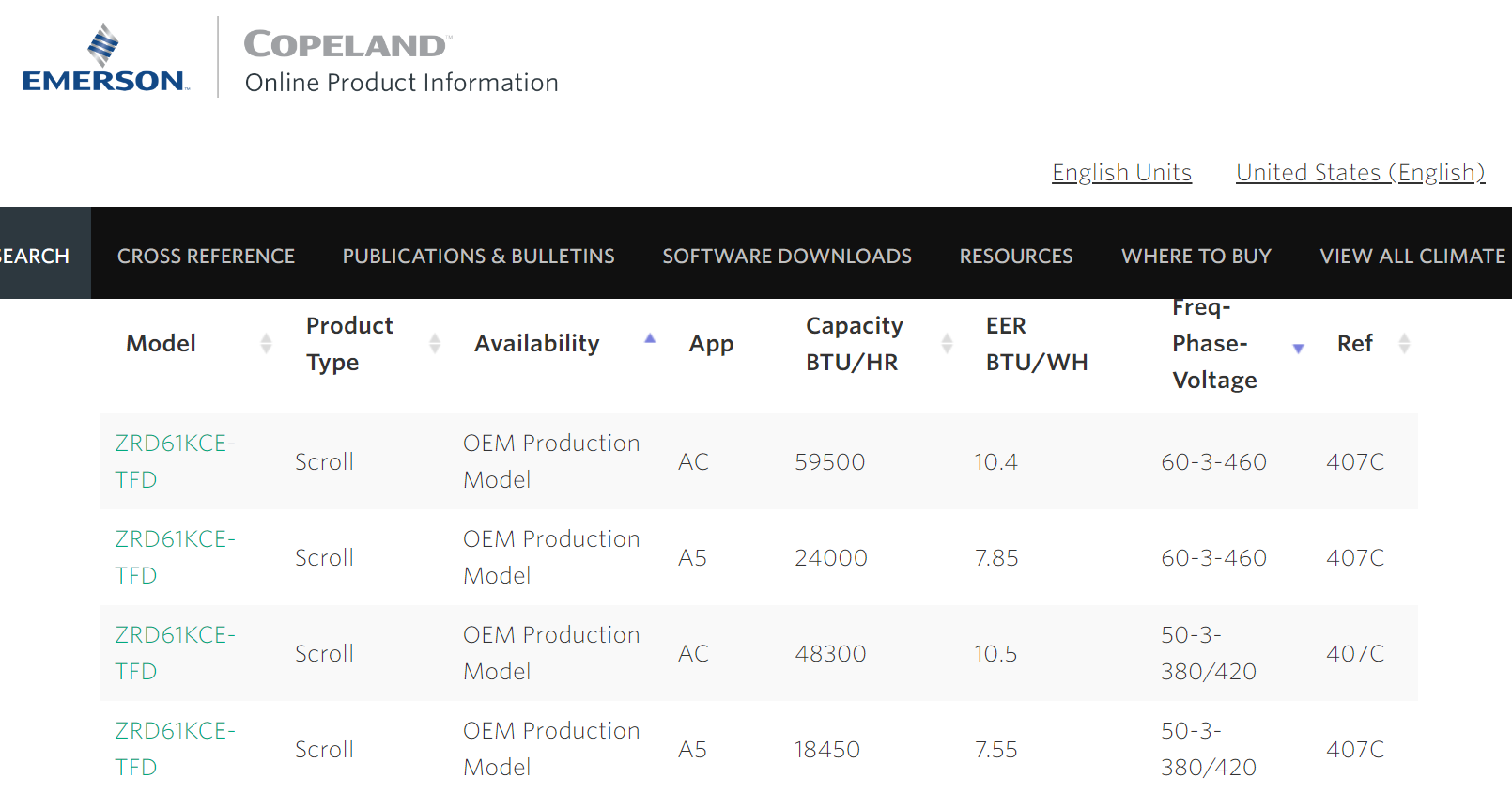

To verify, please visit the Emerson Copeland Online Product Information Webpage.




Enter ZRD61KCE-TFD-961 in the search field.







Four results will appear.  Select your Copeland version.

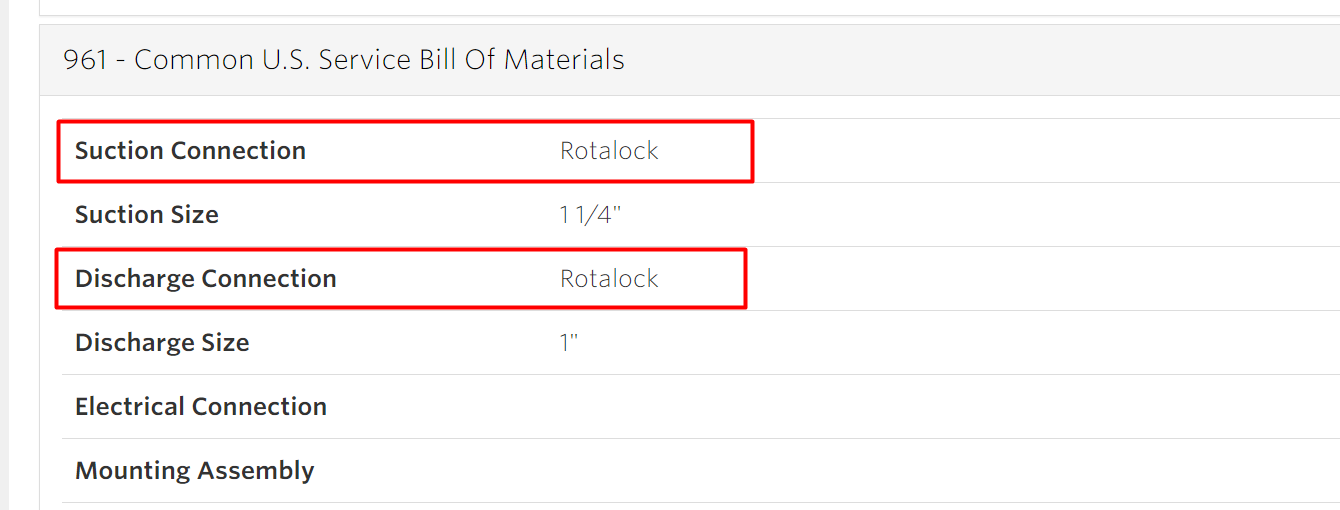

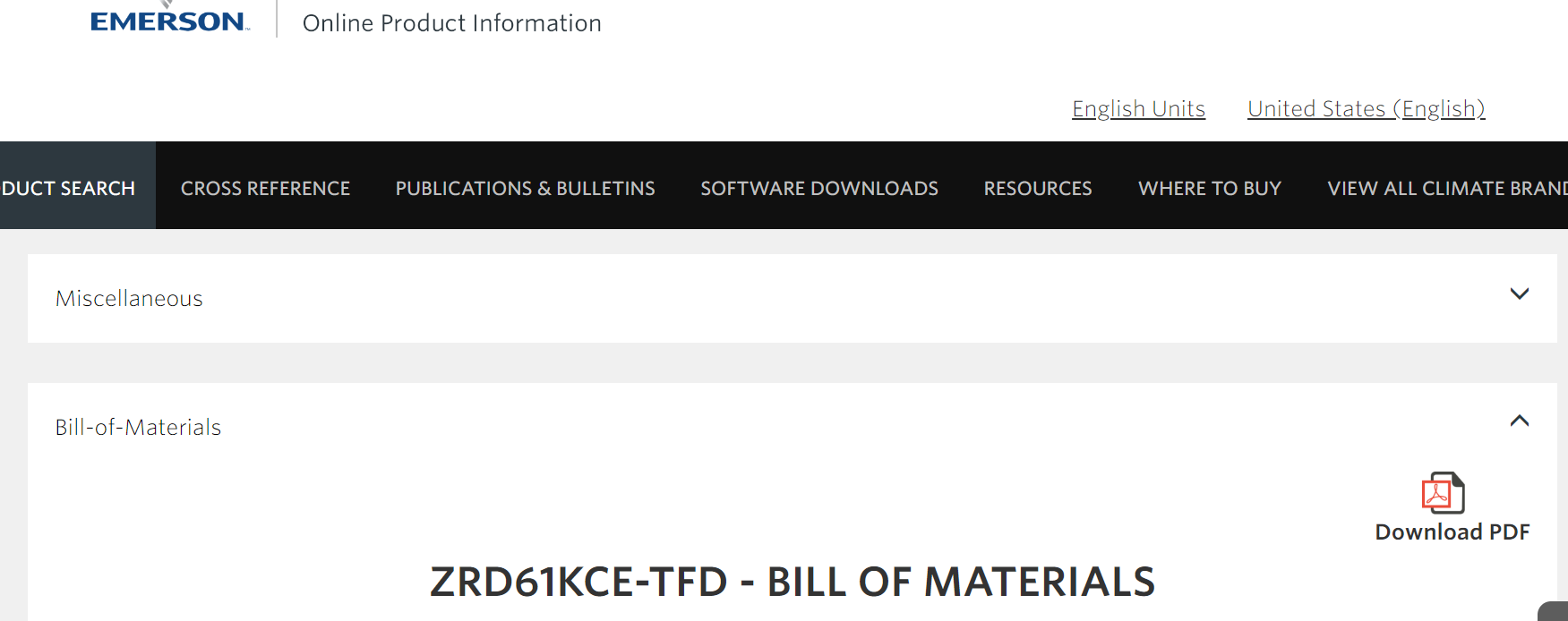

Then scroll down to the Bill of Materials Section










Search for "961 - Common U.S. Service Bill Of Materials"








Please be sure to verify ALL specifications before purchasing the Copeland compressor.
Replied on March 24, 2023 by Ori from Industrial Stores
