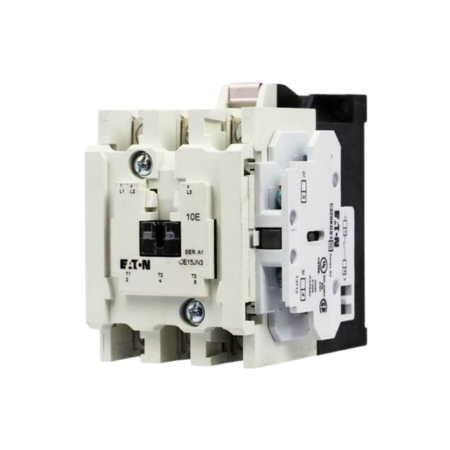

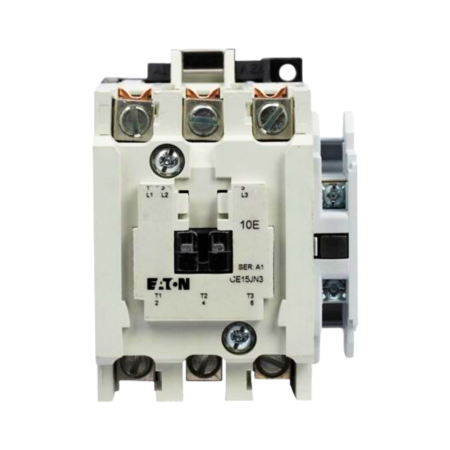

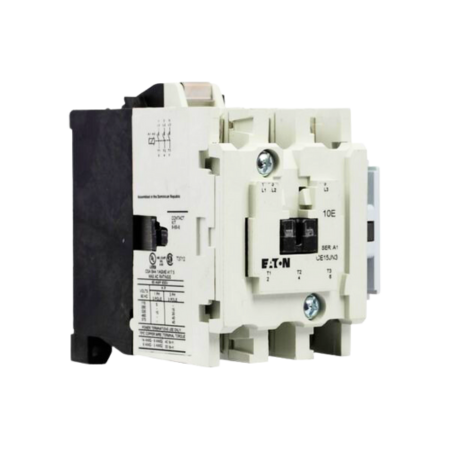

Cutler Hammer CE15GN3AB Normally Open Contractor with No Auxiliary 120V 3P

Cutler Hammer CE15GN3AB Normally Open Contractor with No Auxiliary 120V 3P
Images for general purposes only. Actual may be different than depicted.
Cutler Hammer CE15GN3AB Normally Open Contractor with No Auxiliary 120V 3P Cutler Hammer CE15GN3AB Normally Open Contractor Cutler Hammer CE15GN3AB Normally Open Contractor with No Auxiliary 120V 3P

Cutler Hammer CE15GN3AB Normally Open Contractor with No Auxiliary 120V 3P

SKU: CE15GN3AB
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$773.88     /ea
Usually Ships 2 - 4 Weeks
0
$0.00
0
$0.00
0
CE15GN3AB
The Cutler Hammer CE15GN3AB is a normally open 3-pole contractor with no auxiliary.  It operates at 37A, 3Hp, 110-120V, and 50-60 Hz power supply.  UL and CSA Listed.

This contractor is from the Freedom Series.  This device features a long-life twin break, silver cadmium oxide contacts, and resistance to welding and arc erosion.

The CE15GN3AB is a non-reversing contractor commonly used to switch motor loads in running overcurrent protection applications.
Approvals UL and CSA Listed
Amperage 37A
Horsepower 3Hp
Frequency 50-60 Hz
Voltage 110-120V
Frame Size 90 mm
Relay No Overload Relay
Series Freedom
Operation Non-Reversing
Mounting Method Steel Mounting Plate
