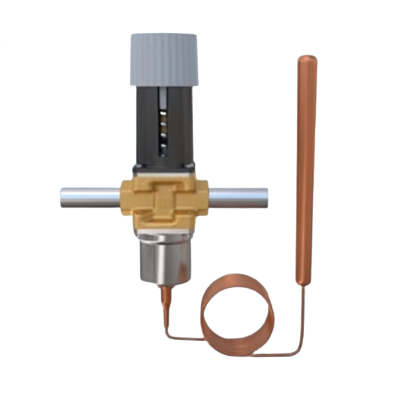

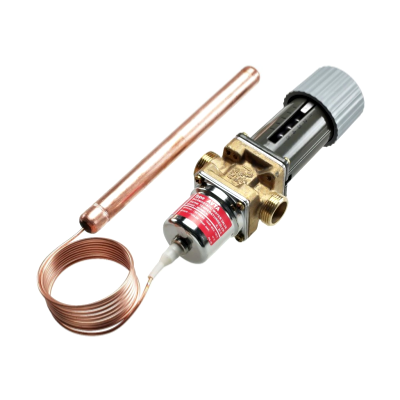

The Danfoss 003N2162 AVTA 15 Thermostatic Valve can regulate temperatures ranging from 25°C - 65°C (77°F - 149°F). When the valve senses a rise in temperature it will prompt the valve to open. The valve sensor's maximum temperature is up to 90°C (194°F).
The 003N2162 has a connection size of G 1/2" and a 2.0m capillary tube. If an additional sensing element is needed, we also offer 003N0078 Universal Charge and 003N0091 Mass Charge.

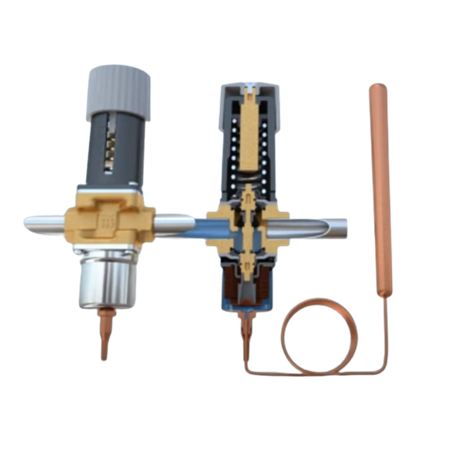

Danfoss AVTA Thermostatic Operated Water Valve is designed with the customer in mind, it provides great performance in constantly maintaining the required temperature. It is a self-acting thermostatic valve that does not require any power supply like electricity or compressed air. Mainly used for temperature regulation in various equipment such as HVAC, Medical equipment, and Food industries.
Mountable in any position. Fast and easy to install with the use of 003N0388 AVTA Mounting Bracket.
Applicable with the following:
| Biomass boilers Compressors Dry cleaning machines Distillation plants Food processing Hydraulic systems |
Injection molding machines Industrial lasers Printing machines Roller mills Steam sterilizers Vacuum pumps |
| Medium | Neutral Media |
|---|---|
| Medium Temperature Range | -25 - 130 °C (-13 - 266 °F) |
| Maximum Working Pressure | 232 Psig (16.0 bar) |
| Maximum Sensor Temperature | 90 °C (194.0 °F) |
