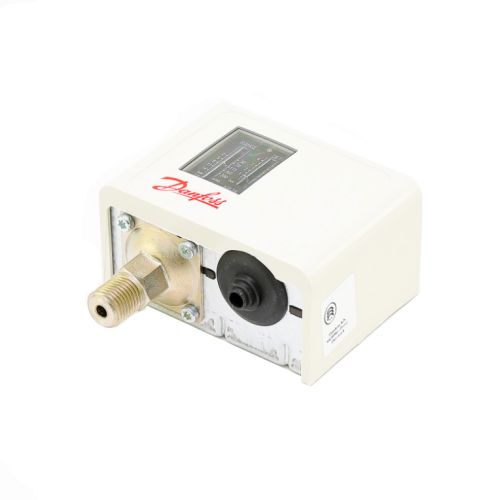

Danfoss 060-110891 Kp36 Spdt Pressure Switch

Name: Danfoss 060-110891 Kp36 Spdt Pressure Switch
Brand: Danfoss
SKU: 060-110891
Price: 108.96 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 060-110891 Kp36 Spdt Pressure Switch

SKU: 060-110891

Brand:

Rating:

Quantity	Price	Stock
23 Usually Ships 3 - 10 Business Days	$108.96 /ea	23

Add to Cart

Add to Wishlist

The 060-110891 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Danfoss 060-110866 Kp36 Pressure Switch	060-110866 Brand Danfoss

Add to Cart

Add to Wishlist

Danfoss 060-110891 is a Single Pole Double Throw Pressure Switch with a 2-14 BAR setting range. This KP36 type switch has silver contact material and is used for gaseous media.

The Danfoss KP pressure switches are used in controlling, monitoring, and alarm systems for steam boiler and other heating equipment. They have a wide setting range and are suitable for alternating current and direct current. Easy to install pressure switches and space-friendly with its small dimensions.

Pressure Switch Model No.	Contact Load Silver for Type KP-36
060-110891	Alternating Current	Direct Current
	AC-1: 16 A, 400 V AC-3: 16 A, 400 V AC-15: 10 A, 400 V	DC-13: 12 W, 220 V

Enclosure rating	IP30
Electrical Connection Size	6-14 mm
Maximum Working Pressure	17.0 bar (245 psig)
Maximum Test Pressure	22.0 bar (319.0 psig)
Pressure Connection Type	G - 1/4 Male

Download Product Information:

Danfoss KP Pressure Switch Technical Datasheet
